Internal Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

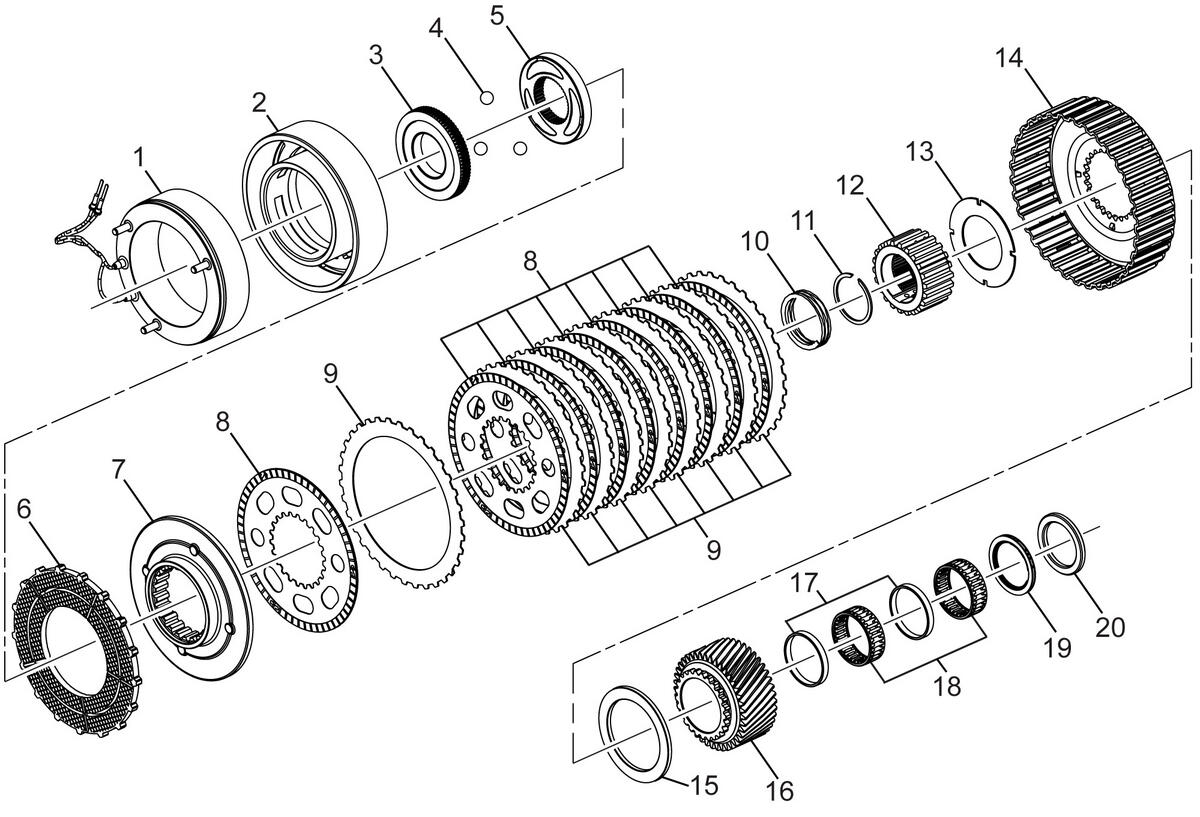

| Callout | Component Name |
|---|---|
| 1 | Transfer Case Two/Four Wheel Drive Clutch Coil |
| 2 | Transfer Case Two/Four Wheel Drive Clutch Coil Housing |
| 3 | Cam |
| 4 | Transfer Case Scissor Lever Ball [3x] |
| 5 | Transfer Case Scissor Mechanism Lever |
| 6 | Transfer Case Armature |
| 7 | Transfer Case Pressure Plate |
| 8 | Transfer Case Friction Plate |
| 9 | Transfer Case Clutch Plate |
| 10 | Transfer Case Four Wheel Drive Clutch Pressure Plate Spring |
| 11 | Transfer Case Rear Output Shaft Rear Bearing Retaining Ring |
| 12 | Gear |
| 13 | Transfer Case Front Output Shaft Driven Sprocket Spacer |
| 14 | Transfer Case High/Low Clutch Housing |
| 15 | Transfer Case Input Shaft Washer |
| 16 | Transfer Case Input Shaft Gear |
| 17 | Transfer Case Front Output Shaft Drive Sprocket Spacer [2x] |
| 18 | Transfer Case Front Output Shaft Drive Sprocket Bearing [2x] |
| 19 | Transfer Case Four Wheel Drive Clutch Housing Bearing |
| 20 | Transfer Case Four Wheel Drive Clutch Shim |
