Front Case Half and Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

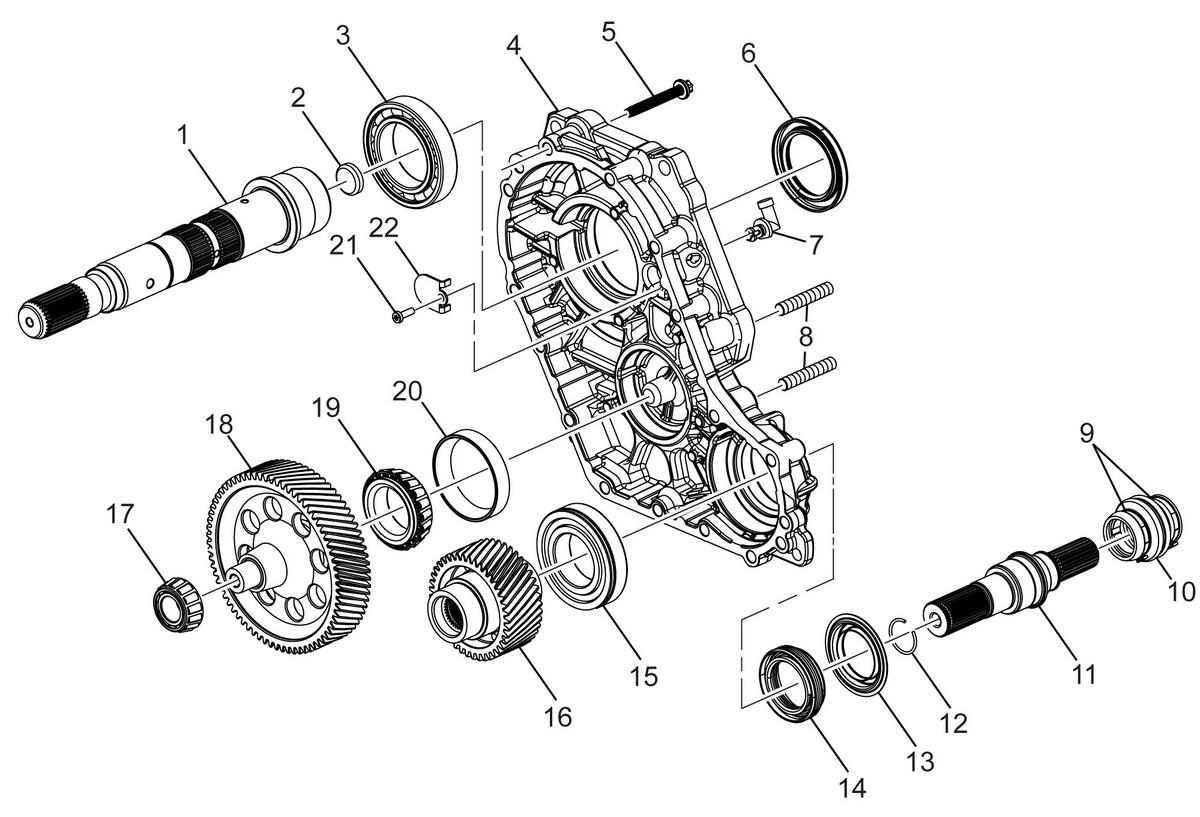

| Callout | Component Name |
|---|---|
| 1 | Transfer Case Input Shaft |
| 2 | Transfer Case Input Shaft Bore Plug |
| 3 | Transfer Case Input Shaft Bearing |
| 4 | Transfer Case Front Case Half |
| 5 | Transfer Case Half Bolt [15x] |
| 6 | Transfer Case Input Shaft Seal |
| 7 | Transfer Case Vent |
| 8 | Transfer Case Stud [2x] |
| 9 | Transfer Case Front Output Shaft Boot Clamp [2x] |
| 10 | Transfer Case Front Output Shaft Boot |
| 11 | Transfer Case Output Shaft |
| 12 | Transfer Case Output Shaft Ring |
| 13 | Transfer Case Front Output Shaft Oil Slinger |
| 14 | Transfer Case Front Output Shaft Seal |
| 15 | Transfer Case Front Output Shaft Front Bearing |
| 16 | Transfer Case Front Output Shaft Gear |
| 17 | Transfer Case Idler Gear Rear Bearing |
| 18 | Transfer Case Idler Gear |
| 19 | Transfer Case Idler Gear Front Bearing |
| 20 | Transfer Case Idler Gear Front Bearing Race |
| 21 | Transfer Case Vent Baffle Bolt |
| 22 | Transfer Case Vent Baffle |
