Transfer Case Rear Case Half and Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

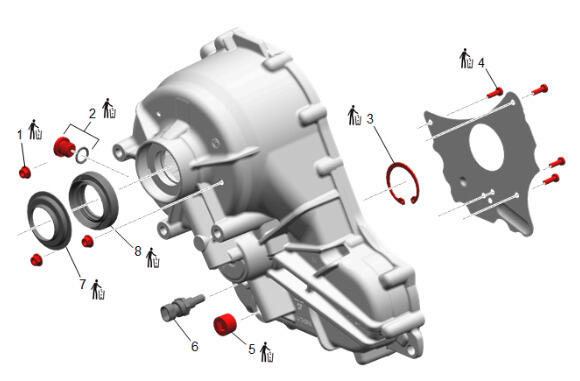

TRANSFER CASE REAR CASE HALF AND COMPONENTS
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transfer Case Two/Four Wheel Drive Clutch Coil Nut [3x] | Yes | - | 10 N.m (89 lb in) | Transfer Case Assemble |
| 2 | Transfer Case Fill Plug | Yes | - | 15 N.m (11 lb ft) | Transfer Case Assemble |
| 3 | Transfer Case Oil Pump Retaining Ring | Yes | - | - | Transfer Case Assemble |
| 4 | Transfer Case Oil Pump Bolt | Yes | - | 15 N.m (11 lb ft) | Transfer Case Assemble |
| 5 | Transfer Case Drain Plug | Yes | Yes | 25 N.m (18 lb ft) | Transfer Case Assemble |
| 6 | Transfer Case Fluid Temperature Sensor | - | - | 22 N.m (16 lb ft) | Transfer Case Assemble |
| 7 | Transfer Case Rear Output Shaft Oil Slinger | Yes | - | - | Transfer Case Assemble |
| 8 | Transfer Case Rear Output Shaft Seal | Yes | - | - | Transfer Case Assemble |
