Transfer Case Front Case Half and Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

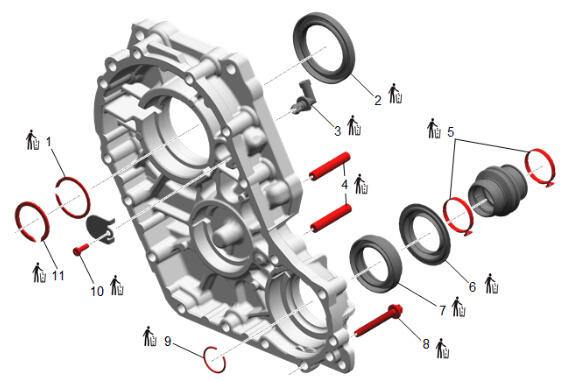

TRANSFER CASE FRONT CASE HALF AND COMPONENTS
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transfer Case Two/Four Wheel Drive Clutch Retaining Ring | Yes | - | - | Transfer Case Assemble |
| 2 | Transfer Case Input Shaft Seal | Yes | - | - | Transfer Case Assemble |
| 3 | Transfer Case Vent | Yes | - | - | Transfer Case Assemble |
| 4 | Transfer Case Stud | Yes | Yes | 11 N.m (97 lb in) | Transfer Case Assemble |
| 5 | Transfer Case Front Output Shaft Boot Clamp [2x] | Yes | - | - | Transfer Case Assemble |
| 6 | Transfer Case Rear Output Shaft Oil Slinger | Yes | - | - | Transfer Case Assemble |
| 7 | Transfer Case Rear Output Shaft Seal | Yes | - | - | Transfer Case Assemble |
| 8 | Transfer Case Half Bolt [15x] | Yes | - | 36 N.m (27 lb ft) | Transfer Case Assemble |
| 9 | Transfer Case Output Shaft Ring | Yes | - | - | Transfer Case Assemble |
| 10 | Transfer Case Vent Baffle Bolt | Yes | - | 8 N.m (71 lb in) | Transfer Case Assemble |
| 11 | Transfer Case Rear Output Shaft Rear Bearing Retaining Ring | Yes | - | - | Transfer Case Assemble |
