Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transfer Case Assembly - Remove - Transfer Case Assembly Replacement

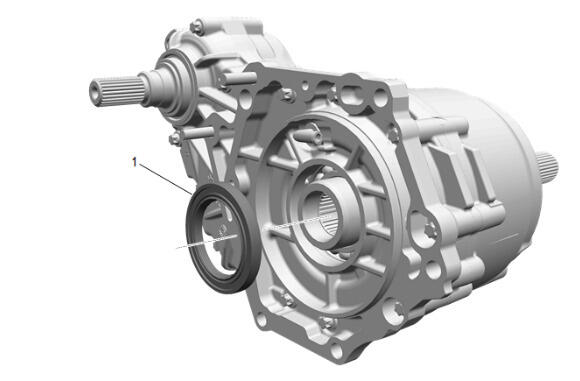

  2. GM5519232Courtesy of GENERAL MOTORS COMPANY

    Using a suitable tool, remove and DISCARD the transfer case input shaft seal (1).
