Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

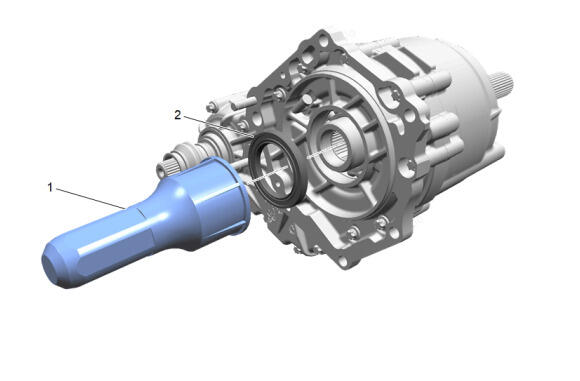

  1. GM5549553Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install the transfer case input shaft seal until flush with the face of the transfer case.

    Using J-42738  Seal Installer (1), install a NEW transfer case input shaft seal (2).

  2. Transfer Case Assembly - Install - Transfer Case Assembly Replacement
