Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

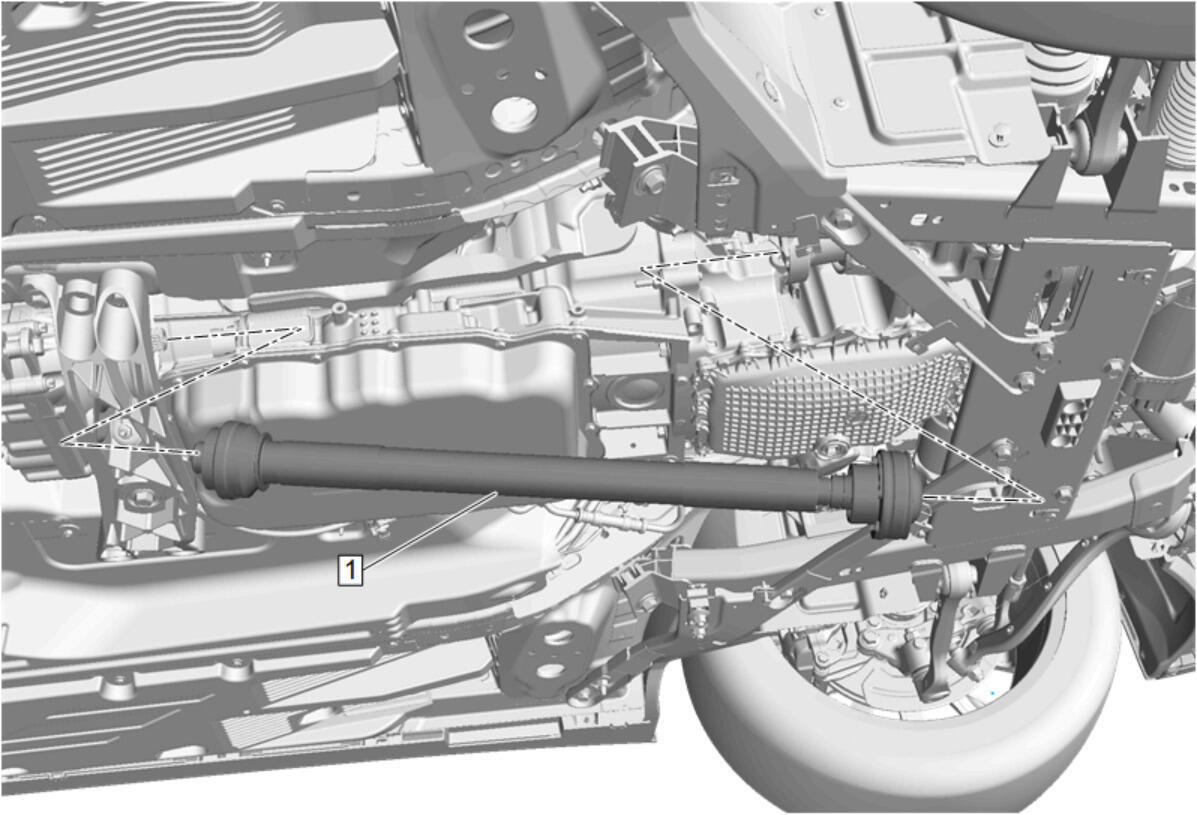

  1. GM5334270Courtesy of GENERAL MOTORS COMPANY

    Front Axle Propeller Shaft (1) - Remove - Front Axle Propeller Shaft Replacement (L3B) , or Front Axle Propeller Shaft Replacement (LSY)

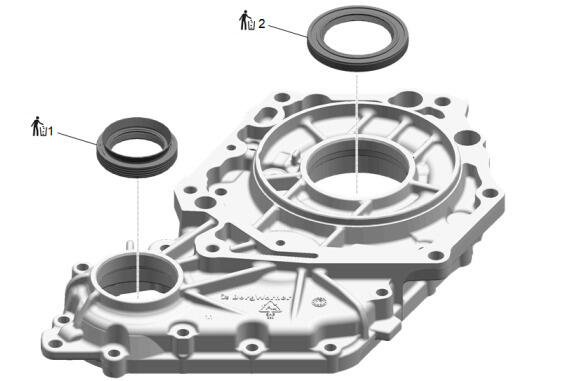

  2. GM5333631Courtesy of GENERAL MOTORS COMPANY

    Front Output Shaft Seal (1) - Remove - Transfer Case Disassemble
