Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

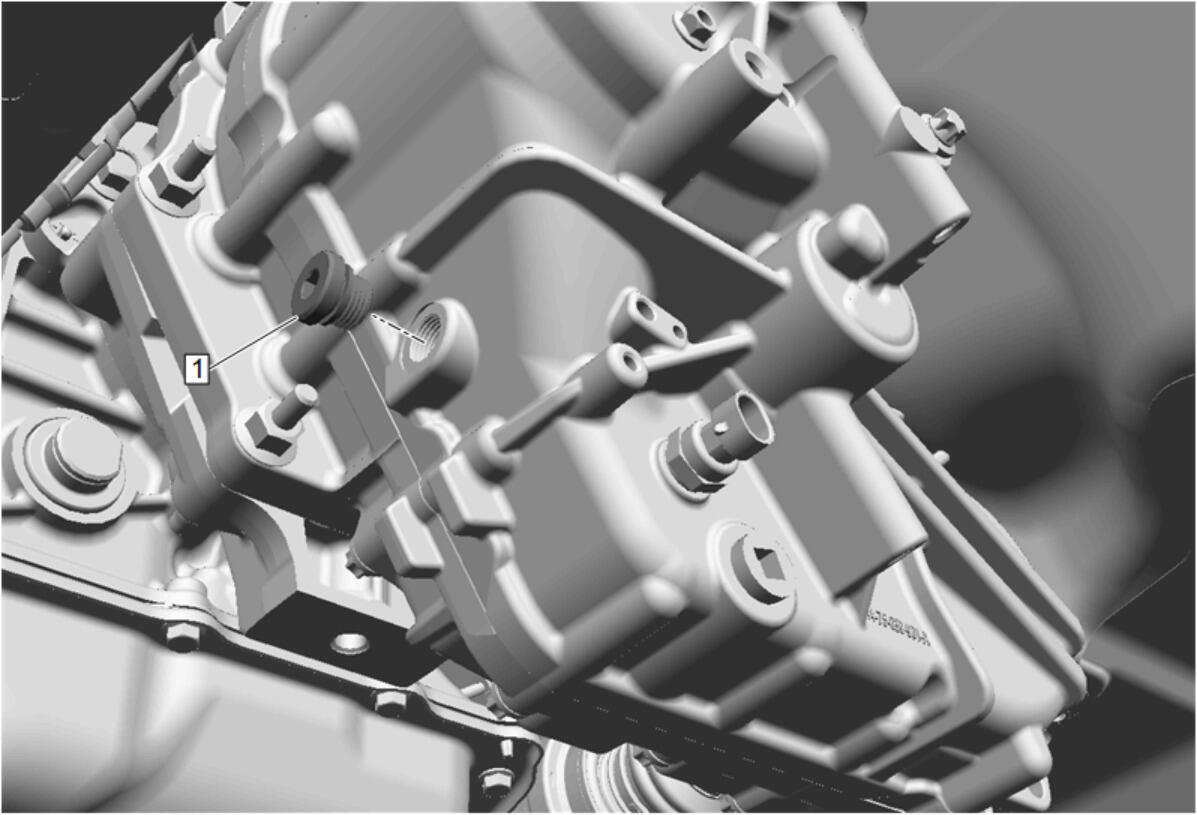

Prepare the transfer case drain plug (1) for installation as follows:
1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

CAUTION:

Refer to Component Fastener Tightening Caution .

Transfer Case Drain Plug (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Transfer Case Oil Fill Plug (1) - Remove
Fill the transfer case with fluid.
- Approximate Fluid Capacities
- Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Inspect the transfer case oil fill plug and seal and replace as necessary.

Transfer Case Oil Fill Plug (1) - Install and tighten - Fastener Specifications
