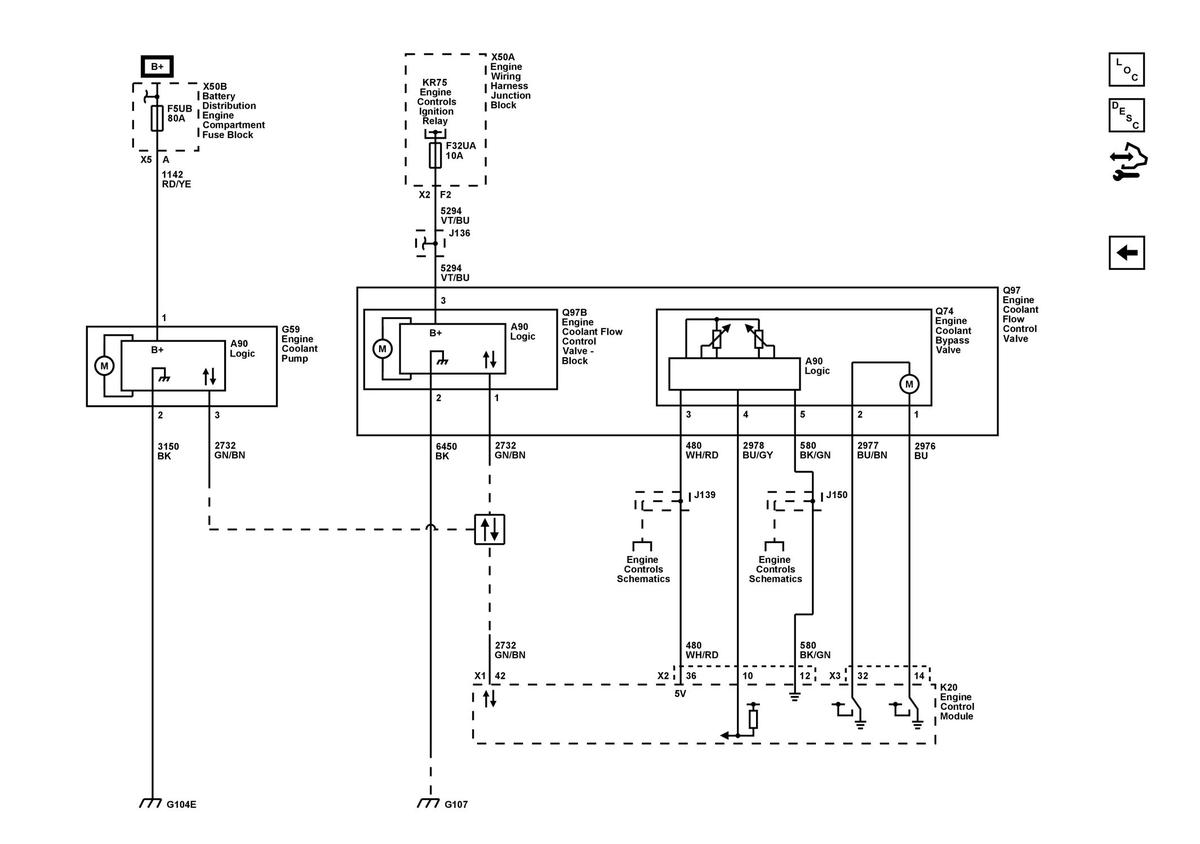

Coolant Circulation (LSY)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
GM5755893Courtesy of GENERAL MOTORS COMPANY
