Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Wheel Drive Intermediate Shaft - Remove - Front Wheel Drive Intermediate Shaft Replacement

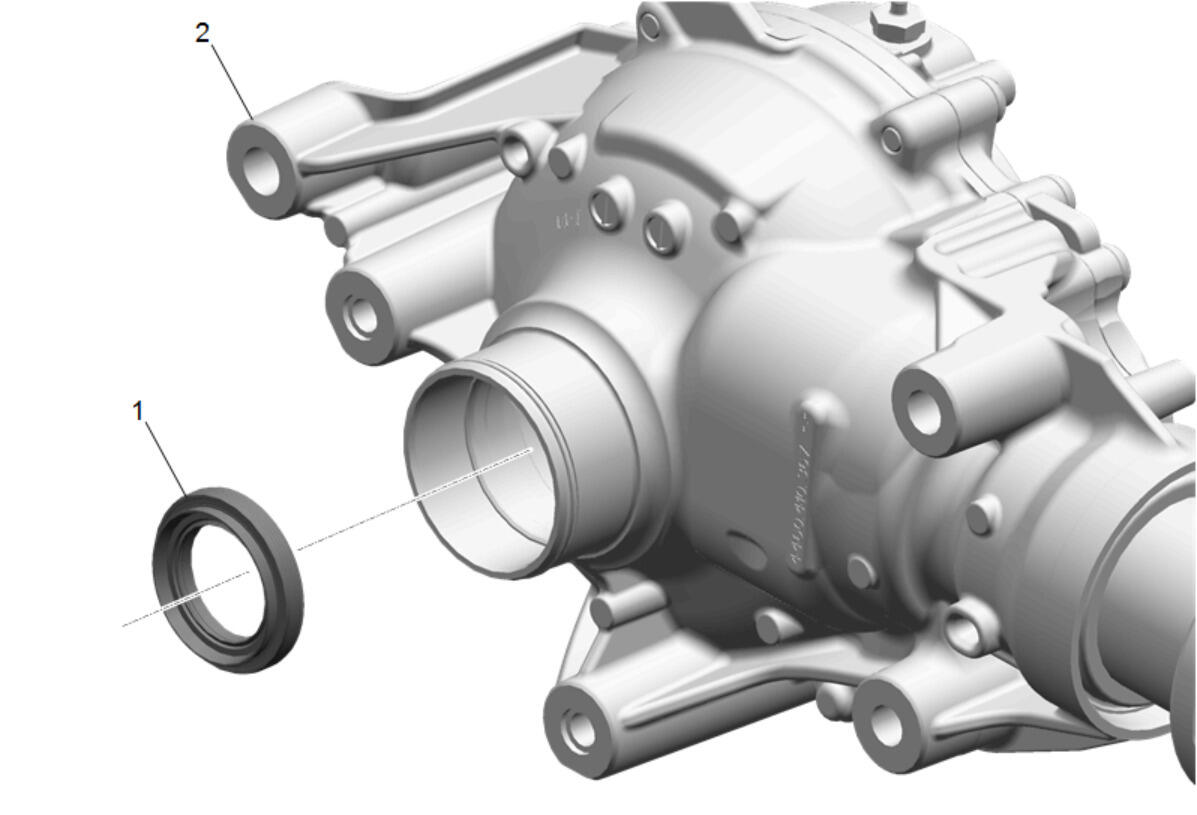

  2. GM5344474Courtesy of GENERAL MOTORS COMPANY

    Using a suitable tool, remove the front axle shaft seal (1) from the front differential carrier (2).
