Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

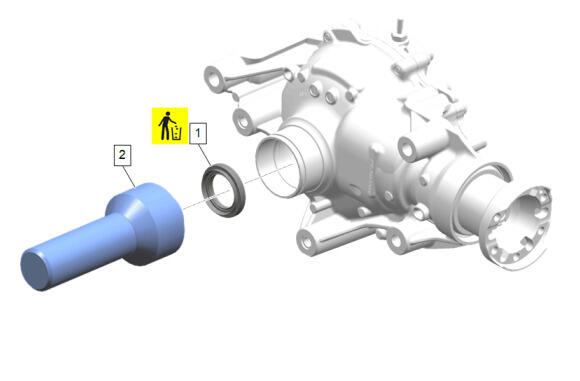

  1. GM5375341Courtesy of GENERAL MOTORS COMPANY

    Using DT-51323  Seal Installer (2), install the front axle shaft seal (1) into the front differential carrier.

  2. Front Wheel Drive Intermediate Shaft - Install - Front Wheel Drive Intermediate Shaft Replacement
