Front Drive Axle Description and Operation
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

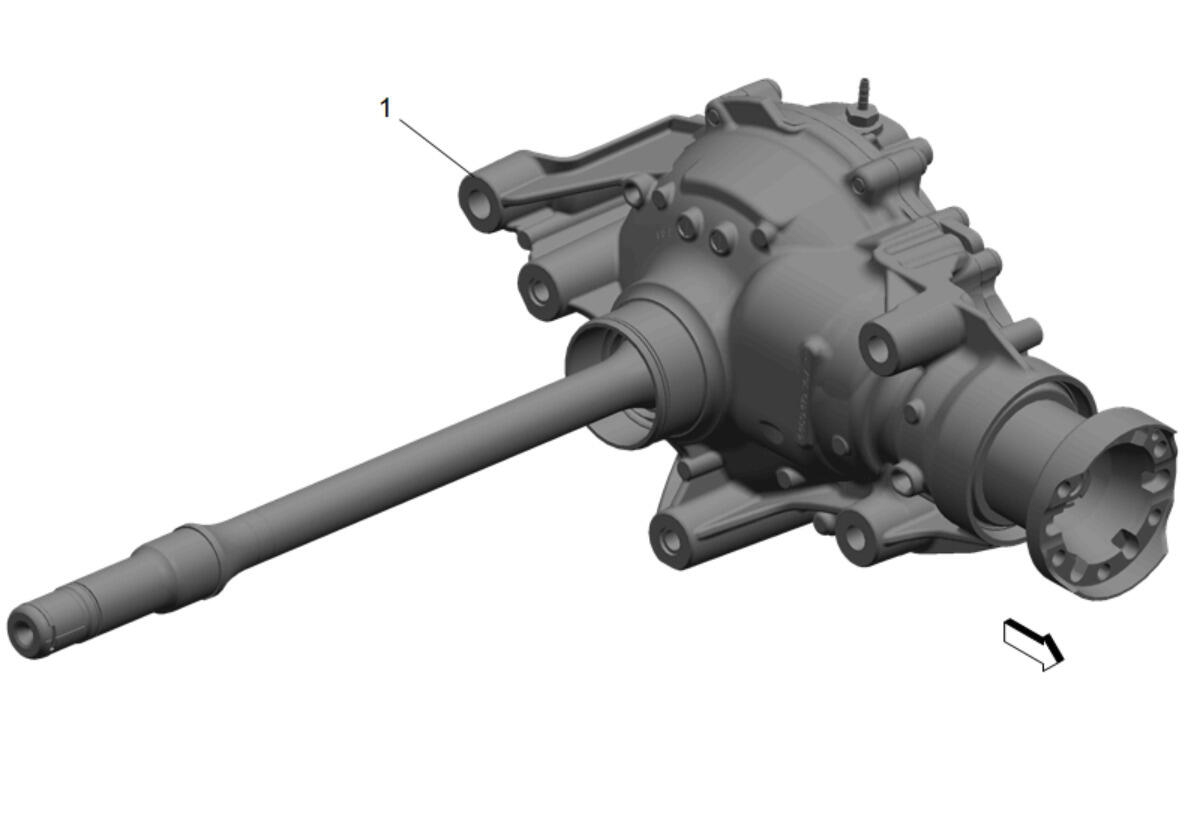

The differential housing, side cover and pinion housing are constructed of cast aluminum. The internal components incorporate a hypoid gear set, ring and pinion, carrier assembly and pinion housing assembly. The pinion is supported in a pinion housing by a tapered roller bearings. The pinion is positioned forward of the ring gear center-line. All models have a 7 5/8 inch ring gear.
