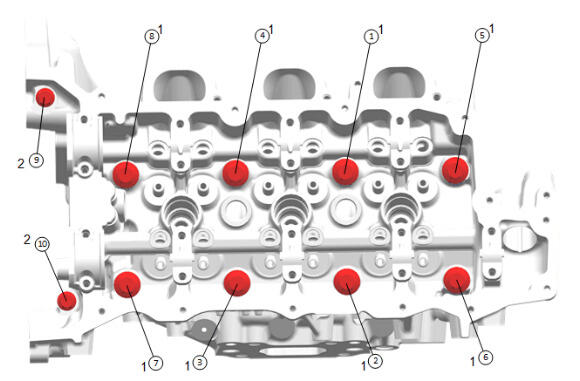

Cylinder Head Bolt Sequence - Left Side
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
| Cylinder Head Bolt Sequence - Left Side | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Cylinder Head Bolt-M11 [8x] | Yes | Yes | First Pass: 30 N.m (22 lb ft) Final Pass: 150 degrees |
Cylinder Head Replacement - Left Side |
| 2 | Cylinder Head Bolt-M8 [2x] | Yes | Yes | First Pass: 15 N.m (11 lb ft) Final Pass: 75 degrees |
Cylinder Head Replacement - Left Side |
