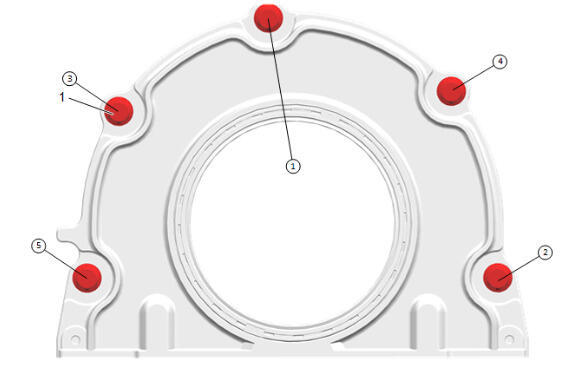

Crankshaft Rear Housing Bolt Sequence
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
| Crankshaft Rear Housing Bolt Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Crankshaft Rear Oil Seal Housing Bolt [5x] | - | - | 10 N.m (89 lb in) | Crankshaft Rear Oil Seal and Housing Replacement (with MHU) , or Crankshaft Rear Oil Seal and Housing Replacement (with MG9) |
