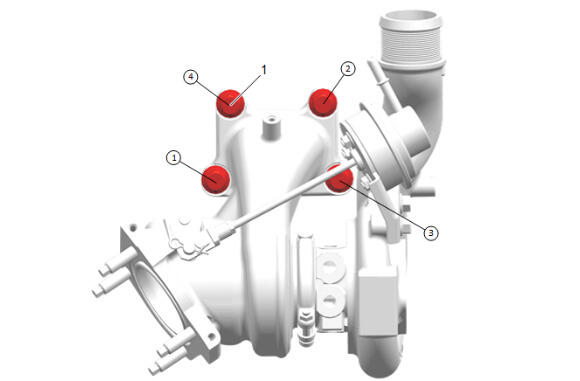

Compressor Air Intake Turbocharger Bolt Sequence - Right Side
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
| Compressor Air Turbocharger Bolt Sequence - Right Side | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Turbocharger Bolt [4x] | Yes | - | 58 N.m (43 lb ft) | Compressor Air Intake Turbocharger Replacement - Right Side |
