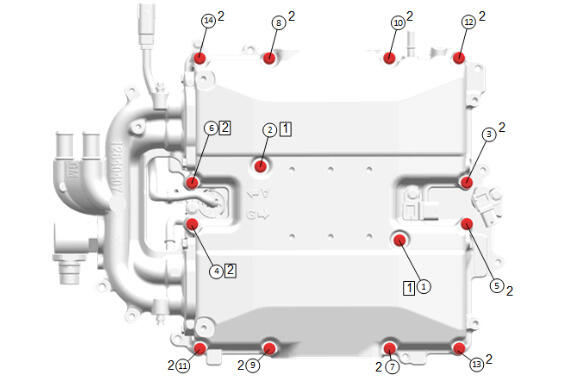

Charge Air Cooler Cover Bolt Sequence
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
| Charge Air Cooler Cover Bolt Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Charge Air Cooler Bolt [2x] | - | - | 10 N.m (89 lb in) | Charge Air Cooler Cover Replacement |
| 2 | Charge Air Cooler Cover Bolt [12x] | - | - | 10 N.m (89 lb in) | Charge Air Cooler Cover Replacement |
