Right Rear Door Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

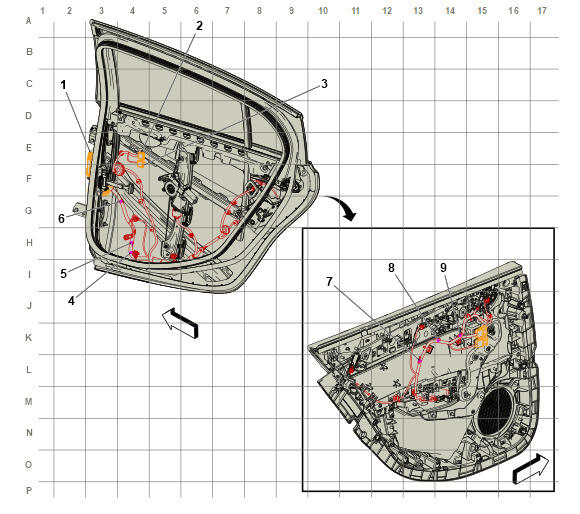

GM5865258Courtesy of GENERAL MOTORS COMPANY
Items
1. X306 Right Rear Side Door Door Wiring Harness to Body Wiring Harness X306 Right Rear Side Door Door Wiring Harness to Body Wiring Harness
2. X310 Right Rear Side Door Door Wiring Harness to Right Rear Side Door Door Lock Door Wiring Harness X310 Right Rear Side Door Door Wiring Harness to Right Rear Side Door Door Lock Door Wiring Harness
3. X302 Right Rear Side Door Door Wiring Harness to Right Rear Side Door Door Lock Door Wiring Harness X302 Right Rear Side Door Door Wiring Harness to Right Rear Side Door Door Lock Door Wiring Harness
4. J803 Right Rear Side Door Door Wiring Harness
5. J802 Right Rear Side Door Door Wiring Harness
6. J800 Right Rear Side Door Door Wiring Harness
7. J806 Right Rear Side Door Door Lock Door Wiring Harness
8. J805 Right Rear Side Door Door Lock Door Wiring Harness
9. J804 Right Rear Side Door Door Lock Door Wiring Harness
