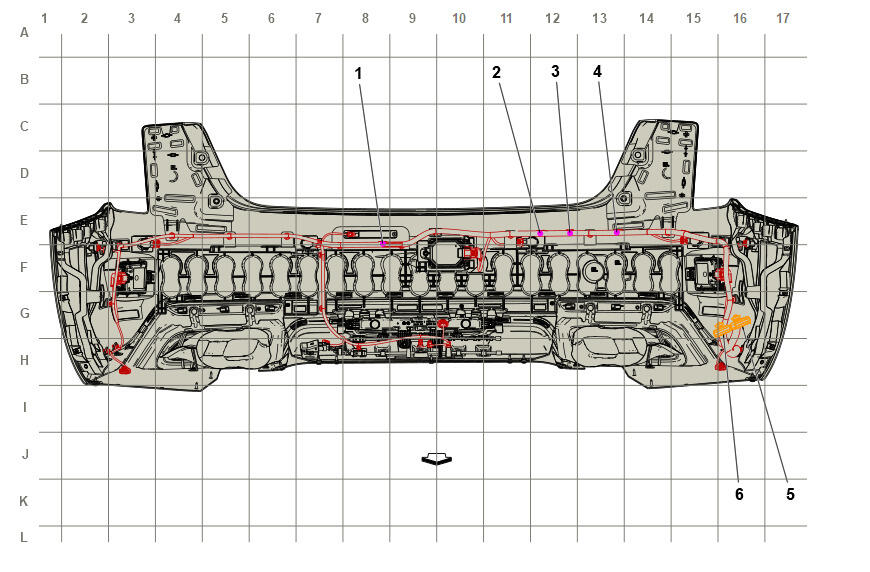

Rear Fascia Harness Routing
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J404 Rear Fascia Wiring Harness (UKC) |
| 2. J403 Rear Fascia Wiring Harness (UD7 or UKG) |
| 3. J402 Rear Fascia Wiring Harness (UD7 or UKG) |
| 4. J401 Rear Fascia Wiring Harness (UKC) |
| 5. X412 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness X412 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness (-UKL) , or X412 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness (UKL) |
| 6. X410 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness X410 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness |
