Rear Compartment Lid Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

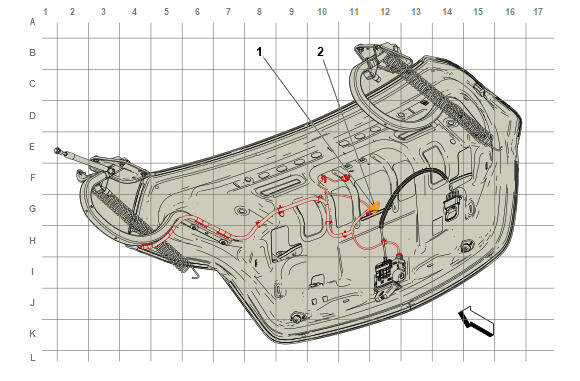

GM5865264Courtesy of GENERAL MOTORS COMPANY
Items
1. X385 Body Wiring Harness to License Wiring Harness (UV2) X385 Body Wiring Harness to License Wiring Harness (UV2)
2. X386 Body Wiring Harness to License Wiring Harness (UVB) X386 Body Wiring Harness to License Wiring Harness (UVB+(LSY/LGY)) , or X386 Body Wiring Harness to License Wiring Harness (UVB+UKL)
