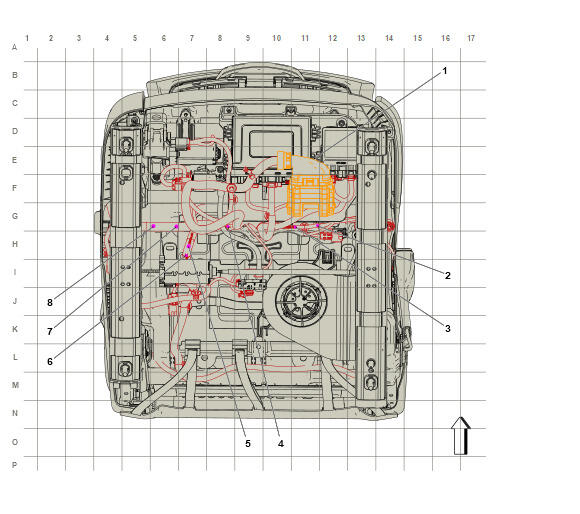

Passenger Seat Harness Routing
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X322 Front Passenger Seat Wiring Harness to Body Wiring Harness X322 Front Passenger Seat Wiring Harness to Body Wiring Harness |
| 2. J346 Front Passenger Seat Wiring Harness (KU9) |
| 3. J347 Front Passenger Seat Wiring Harness (KU9) |
| 4. J349 Front Passenger Seat Wiring Harness |
| 5. J351 Front Passenger Seat Wiring Harness (KA1) |
| 6. J350 Front Passenger Seat Wiring Harness (KA1) |
| 7. J352 Front Passenger Seat Wiring Harness (AHH or AKE) |
| 8. J353 Front Passenger Seat Wiring Harness (AHH or AKE) |
