Passenger Door Harness Routing
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

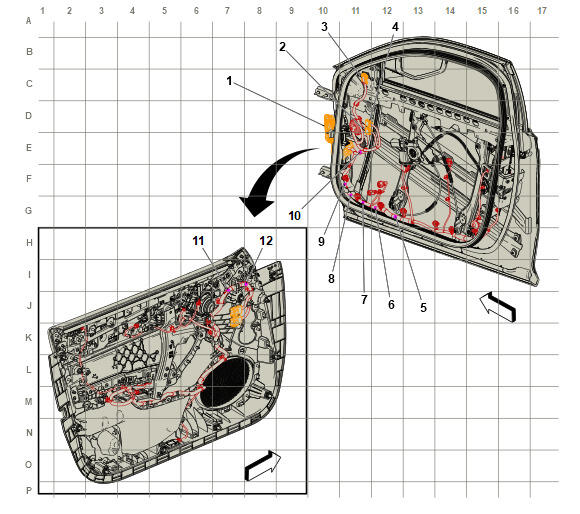

| Items |
|---|
| 1. X304 Front Passenger Side Door Door Wiring Harness to Body Wiring Harness X304 Front Passenger Side Door Door Wiring Harness to Body Wiring Harness |
| 2. X342 Front Passenger Side Door Door Wiring Harness to Front Passenger Side Door Door Lock Door Wiring Harness X342 Front Passenger Side Door Door Wiring Harness to Front Passenger Side Door Door Lock Door Wiring Harness |
| 3. X381 Front Passenger Side Door Door Wiring Harness to Outside Rearview Mirror - Passenger X381 Front Passenger Side Door Door Wiring Harness to Outside Rearview Mirror - Passenger |
| 4. X308 Front Passenger Side Door Door Wiring Harness to Front Passenger Side Door Door Lock Door Wiring Harness X308 Front Passenger Side Door Door Wiring Harness to Front Passenger Side Door Door Lock Door Wiring Harness |
| 5. J605 Front Passenger Side Door Door Wiring Harness |
| 6. J604 Front Passenger Side Door Door Wiring Harness (UQG) |
| 7. J603 Front Passenger Side Door Door Wiring Harness |
| 8. J602 Front Passenger Side Door Door Wiring Harness (UQG) |
| 9. J600 Front Passenger Side Door Door Wiring Harness |
| 10. J601 Front Passenger Side Door Door Wiring Harness |
| 11. J607 Front Passenger Side Door Door Lock Door Wiring Harness |
| 12. J606 Front Passenger Side Door Door Lock Door Wiring Harness |
