Left Rear Door Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

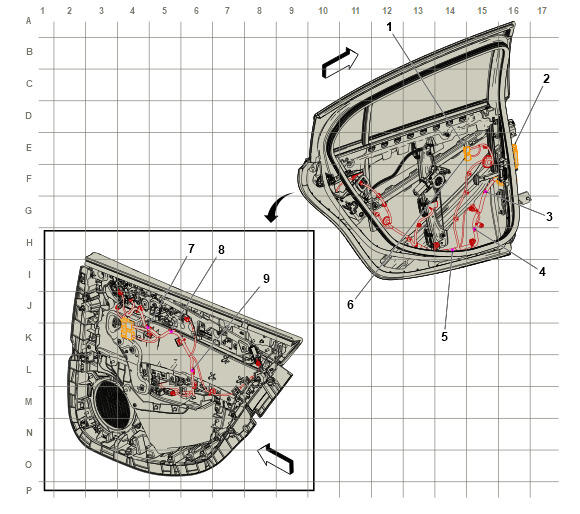

GM5865253Courtesy of GENERAL MOTORS COMPANY
Items
1. X309 Left Rear Side Door Door Wiring Harness to Left Rear Side Door Door Lock Door Wiring Harness X309 Left Rear Side Door Door Wiring Harness to Left Rear Side Door Door Lock Door Wiring Harness
2. X305 Left Rear Side Door Door Wiring Harness to Body Wiring Harness X305 Left Rear Side Door Door Wiring Harness to Body Wiring Harness
3. J700 Left Rear Side Door Door Wiring Harness
4. J701 Left Rear Side Door Door Wiring Harness
5. J702 Left Rear Side Door Door Wiring Harness
6. X301 Left Rear Side Door Door Wiring Harness to Left Rear Side Door Door Lock Door Wiring Harness X301 Left Rear Side Door Door Wiring Harness to Left Rear Side Door Door Lock Door Wiring Harness
7. J703 Left Rear Side Door Door Lock Door Wiring Harness
8. J704 Left Rear Side Door Door Lock Door Wiring Harness
9. J705 Left Rear Side Door Door Lock Door Wiring Harness
