Instrument Panel Harness Routing
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

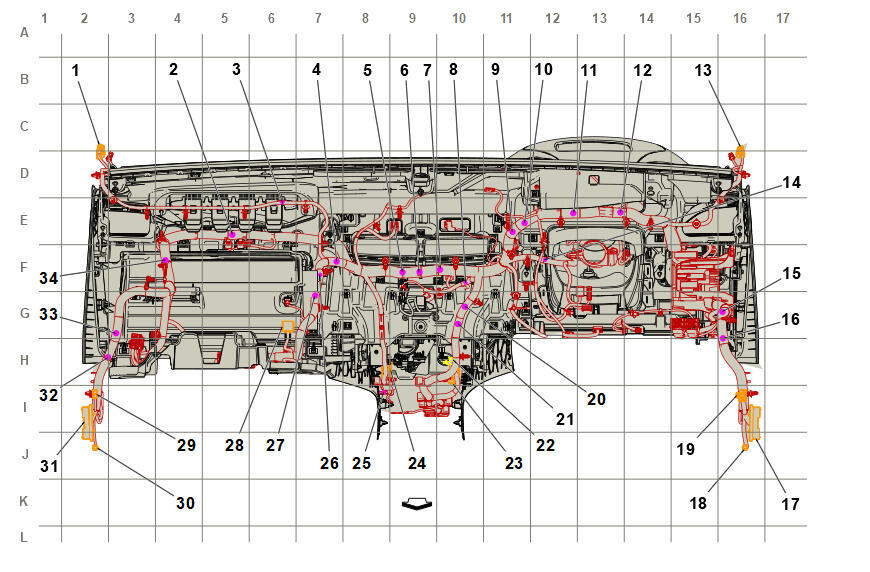

| Items |
|---|
| 1. X215 Instrument Panel Wiring Harness to Roof Wiring Harness X215 Instrument Panel Wiring Harness to Roof Wiring Harness |
| 2. J219 Instrument Panel Wiring Harness |
| 3. J216 Instrument Panel Wiring Harness |
| 4. J215 Instrument Panel Wiring Harness |
| 5. J212 Instrument Panel Wiring Harness |
| 6. J211 Instrument Panel Wiring Harness |
| 7. J210 Instrument Panel Wiring Harness |
| 8. J207 Instrument Panel Wiring Harness |
| 9. J205 Instrument Panel Wiring Harness |
| 10. J204 Instrument Panel Wiring Harness |
| 11. J203 Instrument Panel Wiring Harness |
| 12. J202 Instrument Panel Wiring Harness |
| 13. X214 Instrument Panel Wiring Harness to Roof Wiring Harness X214 Instrument Panel Wiring Harness to Roof Wiring Harness |
| 14. J206 Instrument Panel Wiring Harness |
| 15. J201 Instrument Panel Wiring Harness |
| 16. J200 Instrument Panel Wiring Harness |
| 17. X207 Instrument Panel Wiring Harness to Body Wiring Harness X207 Instrument Panel Wiring Harness to Body Wiring Harness |
| 18. X222 Body Wiring Harness to Instrument Panel Wiring Harness X222 Body Wiring Harness to Instrument Panel Wiring Harness |
| 19. X211 Instrument Panel Wiring Harness to Body Wiring Harness X211 Instrument Panel Wiring Harness to Body Wiring Harness |
| 20. J208 Instrument Panel Wiring Harness |
| 21. J209 Instrument Panel Wiring Harness |
| 22. X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness (-MJK) , or X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness (MJK) |
| 23. X206 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness X206 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness |
| 24. X225 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness Extension Harness X225 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness Extension Harness (-MJK) , or X225 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness Extension Harness (MJK) |
| 25. J214 Instrument Panel Wiring Harness |
| 26. J217 Instrument Panel Wiring Harness |
| 27. J218 Instrument Panel Wiring Harness |
| 28. X265 Instrument Panel Wiring Harness to HVAC Wiring Harness X265 Instrument Panel Wiring Harness to HVAC Wiring Harness |
| 29. X221 Body Wiring Harness to Instrument Panel Wiring Harness X221 Body Wiring Harness to Instrument Panel Wiring Harness |
| 30. X239 Body Wiring Harness to Instrument Panel Wiring Harness (UVB) X239 Body Wiring Harness to Instrument Panel Wiring Harness (UVB) |
| 31. X209 Instrument Panel Wiring Harness to Body Wiring Harness X209 Instrument Panel Wiring Harness to Body Wiring Harness |
| 32. J222 Instrument Panel Wiring Harness |
| 33. J221 Instrument Panel Wiring Harness |
| 34. J220 Instrument Panel Wiring Harness |
