Front Fascia Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

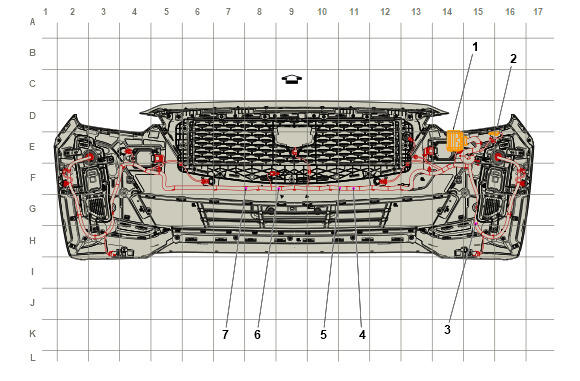

GM5326602Courtesy of GENERAL MOTORS COMPANY
Items
1. X100 Front Fascia Wiring Harness to Forward Lamp Wiring Harness X100 Front Fascia Wiring Harness to Forward Lamp Wiring Harness (-LT4) , or X100 Front Fascia Wiring Harness to Forward Lamp Wiring Harness (LT4)
2. X193 Forward Lamp Wiring Harness to Front Fascia Wiring Harness (UV2) X193 Forward Lamp Wiring Harness to Front Fascia Wiring Harness (UV2)
3. J108 Front Fascia Wiring Harness
4. J105 Front Fascia Wiring Harness
5. J104 Front Fascia Wiring Harness
6. J102 Front Fascia Wiring Harness
7. J101 Front Fascia Wiring Harness
