Forward Lamp Harness Routing - Right Side of Engine Compartment

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

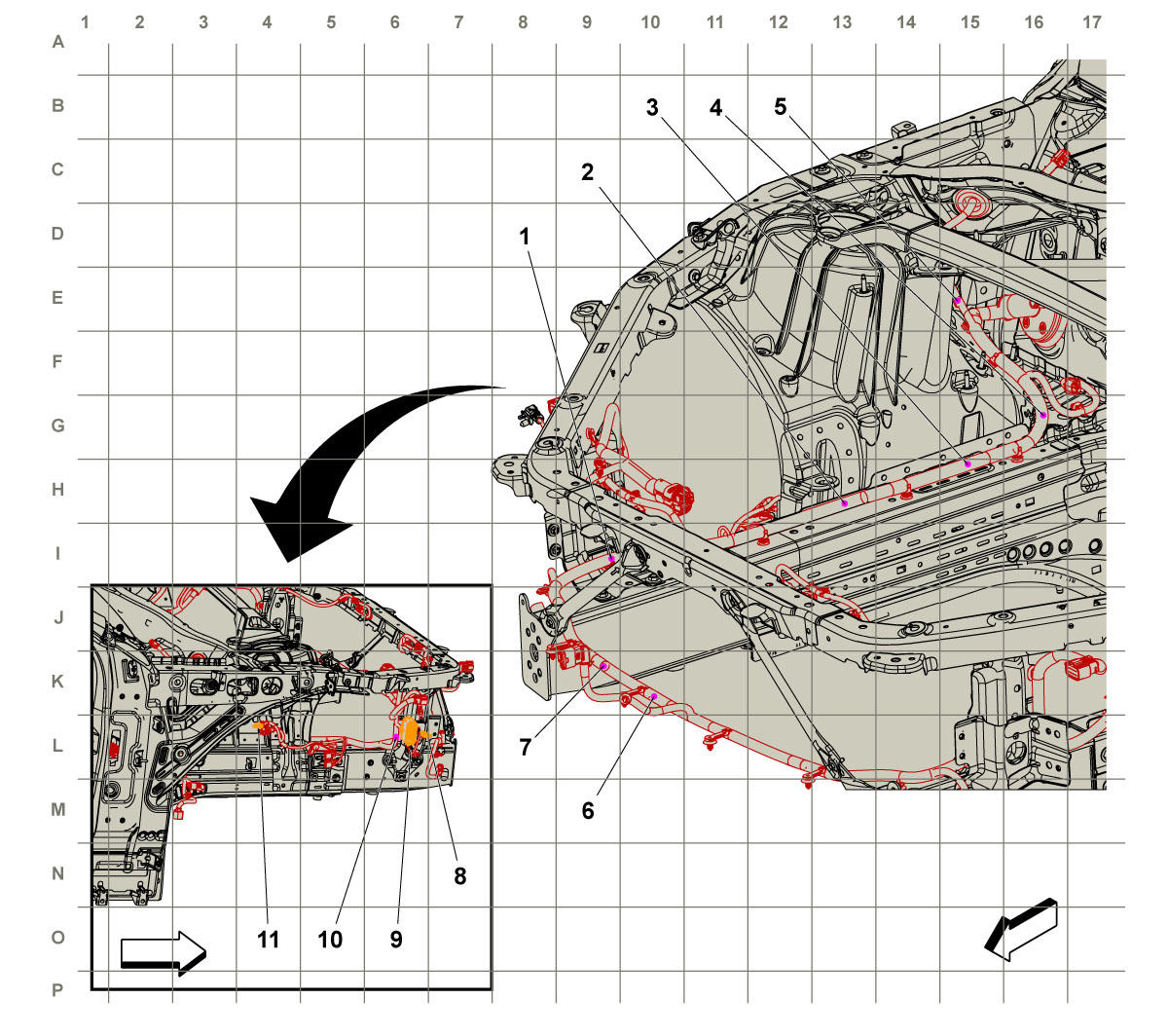

GM5865216Courtesy of GENERAL MOTORS COMPANY
Items
1. J117 Forward Lamp Wiring Harness
2. J119 Forward Lamp Wiring Harness
3. J120 Forward Lamp Wiring Harness
4. J123 Forward Lamp Wiring Harness
5. J121 Forward Lamp Wiring Harness
6. J115 Forward Lamp Wiring Harness
7. J116 Forward Lamp Wiring Harness
8. X193 Forward Lamp Wiring Harness to Front Fascia Wiring Harness (UV2) X193 Forward Lamp Wiring Harness to Front Fascia Wiring Harness (UV2)
9. X100 Front Fascia Wiring Harness to Forward Lamp Wiring Harness X100 Front Fascia Wiring Harness to Forward Lamp Wiring Harness (-LT4) , or X100 Front Fascia Wiring Harness to Forward Lamp Wiring Harness (LT4)
10. J118 Forward Lamp Wiring Harness
11. X243 Forward Lamp Wiring Harness to Right Electronic Suspension Front Suspension Strut Wiring Harness (F55) X243 Forward Lamp Wiring Harness to Right Electronic Suspension Front Suspension Strut Wiring Harness (F55)
