Floor Console Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

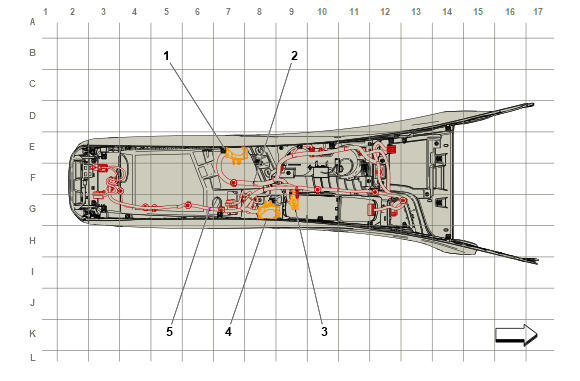

GM5330481Courtesy of GENERAL MOTORS COMPANY
Items
1. X225 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness Extension Harness X225 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness Extension Harness (-MJK) , or X225 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness Extension Harness (MJK)
2. J345 Floor Console Trim Plate Harness
3. X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness X213 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness (-MJK)
4. X206 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness X206 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness
5. J343 Front Floor Console Wiring Harness
