Engine Harness Routing - Right Side of Transmission (MHX)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

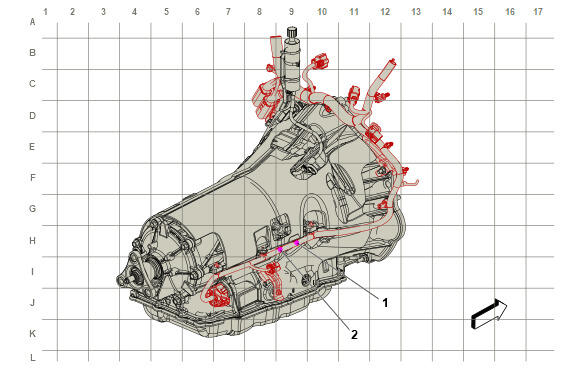

GM5638833Courtesy of GENERAL MOTORS COMPANY
Items
1. J124 Forward Lamp Wiring Harness (T87)
2. J139 Engine Wiring Harness
