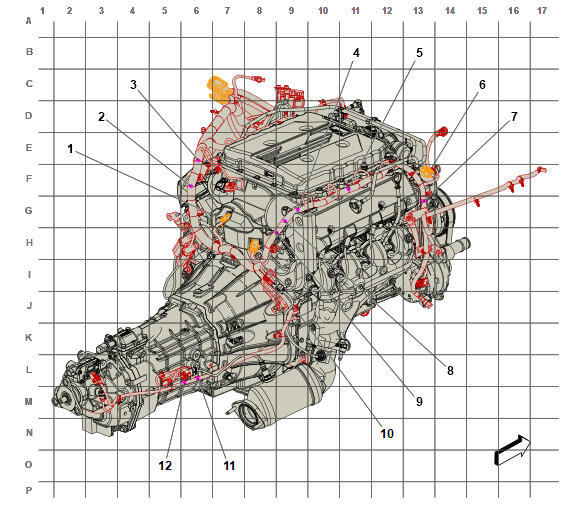

Engine Harness Routing - Right Rear Side of Engine (LT4+MJK)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X160 Engine Wiring Harness to Odd Fuel Injector Wiring Harness X160 Engine Wiring Harness to Odd Fuel Injector Wiring Harness (LT4) |
| 2. J156 Engine Wiring Harness (LGY) |
| 3. J136 Engine Wiring Harness |
| 4. J146 Engine Wiring Harness (LGY) |
| 5. J147 Engine Wiring Harness (LGY) |
| 6. X134 Engine Wiring Harness to Valve Rocker Arm Oil Control Valve Extension Wiring Harness (LT4) X134 Engine Wiring Harness to Valve Rocker Arm Oil Control Valve Extension Wiring Harness (LT4) |
| 7. J140 Engine Wiring Harness |
| 8. J129 Engine Wiring Harness |
| 9. J143 Engine Wiring Harness (LGY) |
| 10. X161 Engine Wiring Harness to Even Fuel Injector Wiring Harness (LGY/LT4) X161 Engine Wiring Harness to Even Fuel Injector Wiring Harness (LT4) |
| 11. J135 Engine Wiring Harness |
| 12. J139 Engine Wiring Harness |
