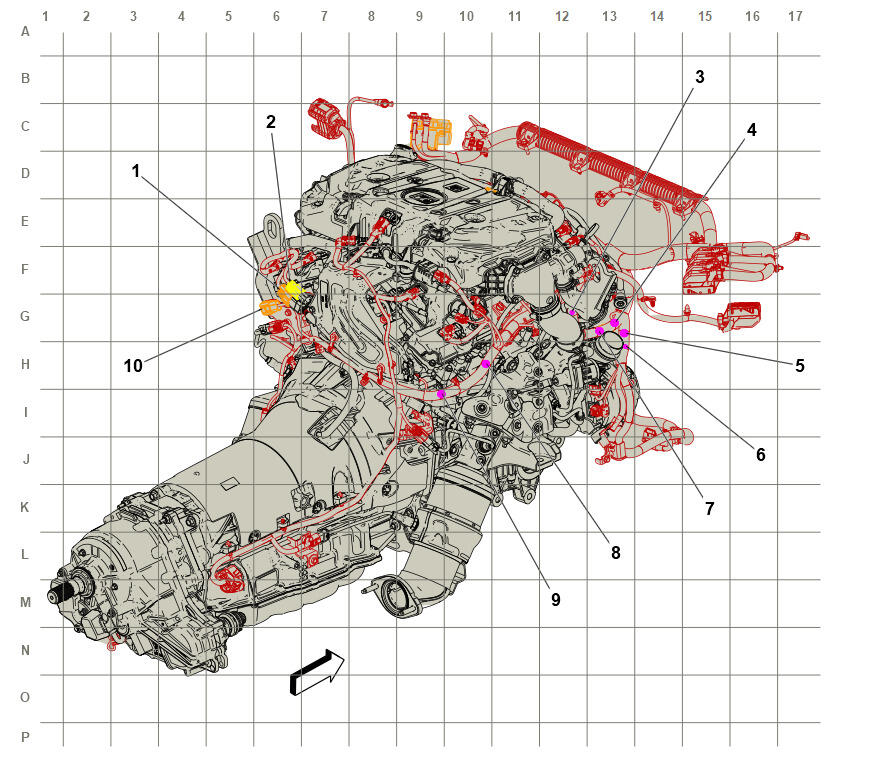

Engine Harness Routing - Right Rear (LGY)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X161 Engine Wiring Harness to Even Fuel Injector Wiring Harness (LGY/LT4) X161 Engine Wiring Harness to Even Fuel Injector Wiring Harness (LGY) |
| 2. X160 Engine Wiring Harness to Odd Fuel Injector Wiring Harness X160 Engine Wiring Harness to Odd Fuel Injector Wiring Harness (LGY) |
| 3. J137 Engine Wiring Harness |
| 4. J135 Engine Wiring Harness |
| 5. J141 Engine Wiring Harness |
| 6. J142 Engine Wiring Harness |
| 7. J136 Engine Wiring Harness |
| 8. J139 Engine Wiring Harness |
| 9. J140 Engine Wiring Harness |
| 10. X187 Starter Generator Ground Harness to Engine Wiring Harness (LGY) X187 Starter Generator Ground Harness to Engine Wiring Harness |
