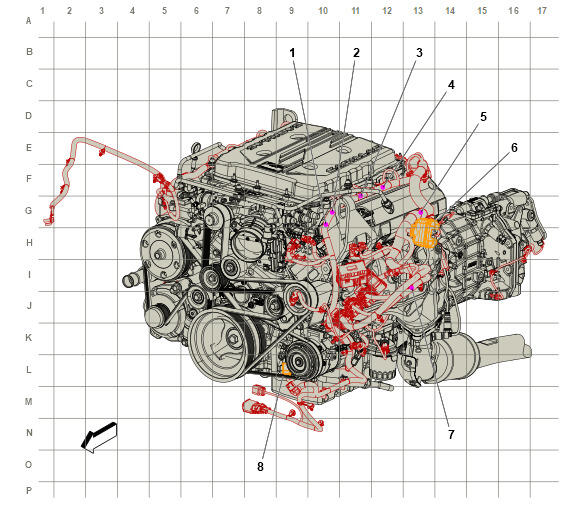

Engine Harness Routing - Left Side of Engine (LT4+MJK)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J145 Engine Wiring Harness |
| 2. J131 Engine Wiring Harness |
| 3. J137 Engine Wiring Harness |
| 4. J138 Engine Wiring Harness |
| 5. J132 Engine Wiring Harness |
| 6. X160 Engine Wiring Harness to Odd Fuel Injector Wiring Harness X160 Engine Wiring Harness to Odd Fuel Injector Wiring Harness (LT4) |
| 7. J141 Engine Wiring Harness |
| 8. X127 Forward Lamp Wiring Harness to Body Wiring Harness X127 Forward Lamp Wiring Harness to Body Wiring Harness |
