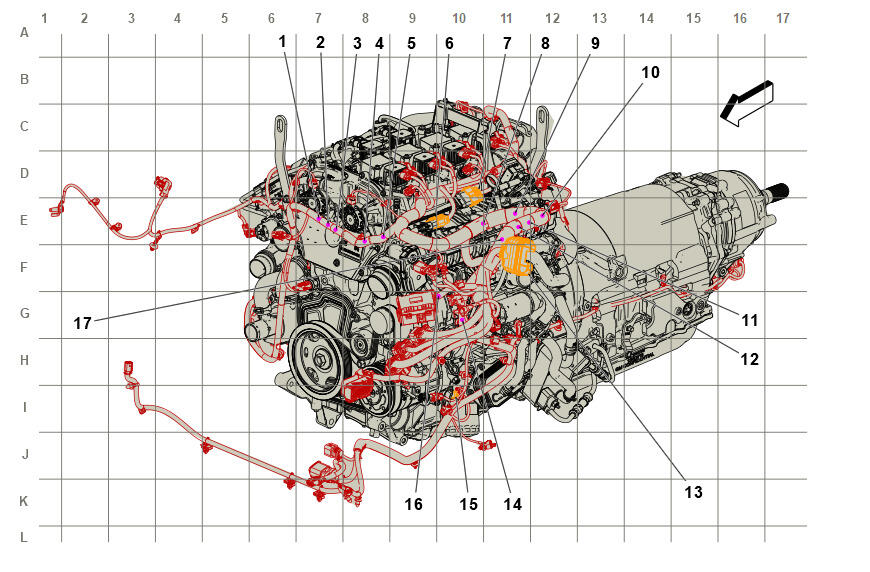

Engine Harness Routing - Left Front (LSY)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J135 Engine Wiring Harness |
| 2. J131 Engine Wiring Harness |
| 3. J130 Engine Wiring Harness |
| 4. J136 Engine Wiring Harness |
| 5. J129 Engine Wiring Harness |
| 6. X160 Engine Wiring Harness to Odd Fuel Injector Wiring Harness X160 Engine Wiring Harness to Fuel Injector Wiring Harness (LSY) |
| 7. X132 Engine Wiring Harness to Engine Extension Wiring Harness (LSY) X132 Engine Wiring Harness to Engine Extension Wiring Harness (LSY) |
| 8. J149 Engine Wiring Harness (LSY) |
| 9. J137 Engine Wiring Harness |
| 10. J134 Engine Wiring Harness |
| 11. J148 Engine Wiring Harness (LSY) |
| 12. J138 Engine Wiring Harness |
| 13. X180 Engine Wiring Harness to Forward Lamp Wiring Harness X180 Engine Wiring Harness to Forward Lamp Wiring Harness |
| 14. J142 Engine Wiring Harness |
| 15. X121 Engine Wiring Harness to Engine Oil Level Indicator Control Module Wiring Harness X121 Engine Wiring Harness to Engine Oil Level Indicator Control Module Wiring Harness (LSY) |
| 16. J141 Engine Wiring Harness |
| 17. J132 Engine Wiring Harness |
