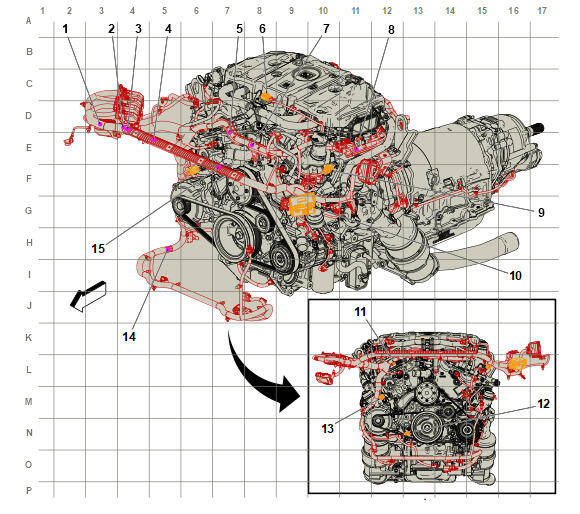

Engine Harness Routing - Left Front (LGY)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J129 Engine Wiring Harness |
| 2. J130 Engine Wiring Harness |
| 3. J131 Engine Wiring Harness |
| 4. J132 Engine Wiring Harness |
| 5. J145 Engine Wiring Harness |
| 6. X25 Charge Air Cooler Cover Connector (LGY) X25 Charge Air Cooler Cover Connector X1 (LGY) , or X25 Charge Air Cooler Cover Connector X2 (LGY) |
| 7. J146 Engine Wiring Harness (LGY) |
| 8. J147 Engine Wiring Harness (LGY) |
| 9. X129 Engine Wiring Harness to Engine Sensor Jumper Bank 2 Wiring Harness (LGY) X129 Engine Wiring Harness to Engine Sensor Jumper Bank 2 Wiring Harness (LGY) |
| 10. X180 Engine Wiring Harness to Forward Lamp Wiring Harness X180 Engine Wiring Harness to Forward Lamp Wiring Harness |
| 11. X131 Engine Wiring Harness to Engine Coolant Temperature Sensor Wiring Harness (LGY) X131 Engine Wiring Harness to Engine Coolant Temperature Sensor Wiring Harness |
| 12. X121 Engine Wiring Harness to Engine Oil Level Indicator Control Module Wiring Harness X121 Engine Wiring Harness to Engine Oil Level Indicator Control Module Wiring Harness (LGY) |
| 13. X128 Engine Wiring Harness to Engine Sensor Jumper Bank 1 Wiring Harness (LGY) X128 Engine Wiring Harness to Engine Sensor Jumper Bank 1 Wiring Harness |
| 14. J143 Engine Wiring Harness (LGY) |
| 15. J134 Engine Wiring Harness |
