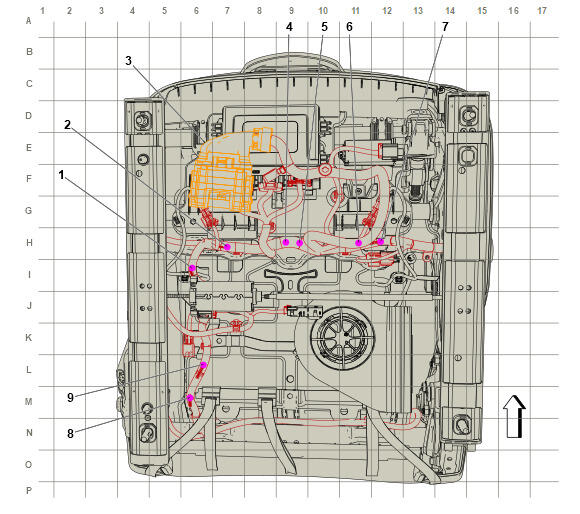

Driver Seat Harness Routing
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J342 Front Driver Seat Wiring Harness (KA1) |
| 2. J339 Front Driver Seat Wiring Harness (KA1) |
| 3. X321 Front Driver Seat Wiring Harness to Body Wiring Harness X321 Front Driver Seat Wiring Harness to Body Wiring Harness |
| 4. J338 Front Driver Seat Wiring Harness (KU9) |
| 5. J337 Front Driver Seat Wiring Harness |
| 6. J336 Front Driver Seat Wiring Harness (KU9) |
| 7. J335 Front Driver Seat Wiring Harness (A45) |
| 8. J340 Front Driver Seat Wiring Harness (A45) |
| 9. J341 Front Driver Seat Wiring Harness (KA1) |
