Driver Door Harness Routing

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

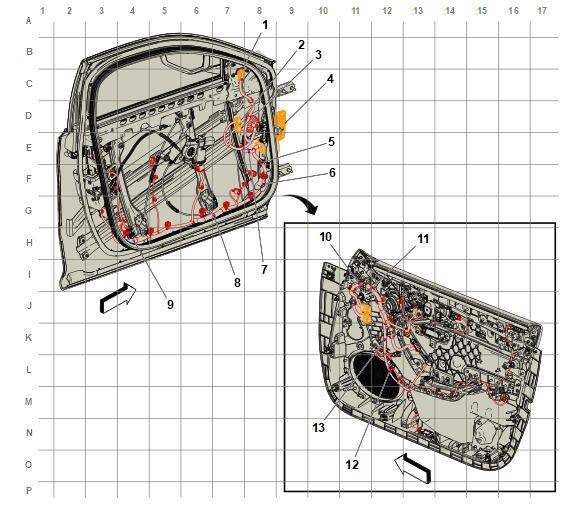

GM5865244Courtesy of GENERAL MOTORS COMPANY
Items
1. X380 Front Driver Side Door Door Wiring Harness to Outside Rearview Mirror - Driver X380 Front Driver Side Door Door Wiring Harness to Outside Rearview Mirror - Driver
2. X307 Front Driver Side Door Door Wiring Harness to Front Driver Side Door Door Lock Door Wiring Harness X307 Front Driver Side Door Door Wiring Harness to Front Driver Side Door Door Lock Door Wiring Harness
3. X345 Front Driver Side Door Door Wiring Harness to Front Driver Side Door Door Lock Door Wiring Harness X345 Front Driver Side Door Door Wiring Harness to Front Driver Side Door Door Lock Door Wiring Harness
4. X303 Front Driver Side Door Door Wiring Harness to Body Wiring Harness X303 Front Driver Side Door Door Wiring Harness to Body Wiring Harness
5. J501 Front Driver Side Door Door Wiring Harness (UQG)
6. J502 Front Driver Side Door Door Wiring Harness
7. J500 Front Driver Side Door Door Wiring Harness (UQG)
8. J503 Front Driver Side Door Door Wiring Harness
9. J504 Front Driver Side Door Door Wiring Harness
10. J505 Front Driver Side Door Door Lock Door Wiring Harness
11. J506 Front Driver Side Door Door Lock Door Wiring Harness
12. J508 Front Driver Side Door Door Lock Door Wiring Harness
13. J507 Front Driver Side Door Door Lock Door Wiring Harness
