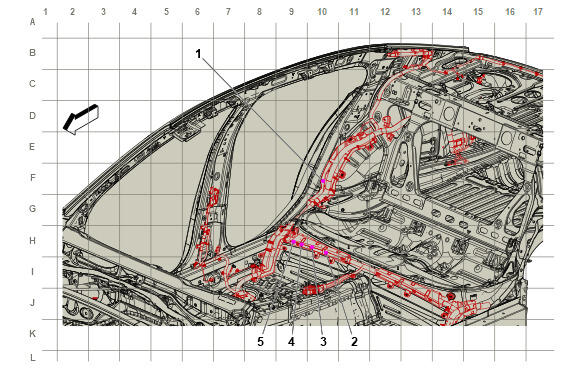

Body Harness Routing - Right Rear of Passenger Compartment
Body Harness Routing - Right Rear of Passenger Compartment
WARNING:
This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
Items
1. J328 Body Wiring Harness
2. J325 Body Wiring Harness
3. J323 Body Wiring Harness
4. J321 Body Wiring Harness
5. J320 Body Wiring Harness
