Body Harness Routing - Right Front of Passenger Compartment
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

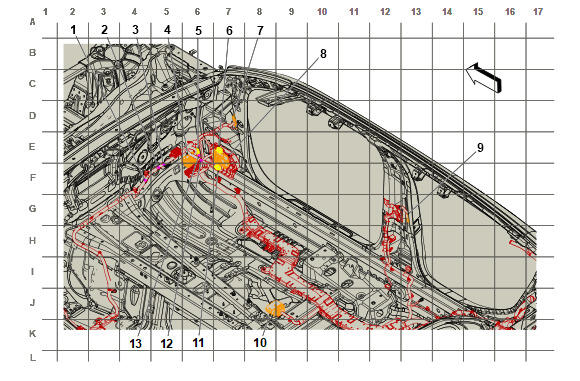

| Items |
|---|
| 1. J230 Body Wiring Harness |
| 2. J231 Body Wiring Harness |
| 3. J232 Body Wiring Harness |
| 4. X126 Forward Lamp Wiring Harness to Body Wiring Harness X126 Forward Lamp Wiring Harness to Body Wiring Harness |
| 5. X194 Body Wiring Harness to Forward Lamp Wiring Harness (UV2) X194 Body Wiring Harness to Forward Lamp Wiring Harness (UV2) |
| 6. X221 Body Wiring Harness to Instrument Panel Wiring Harness X221 Body Wiring Harness to Instrument Panel Wiring Harness |
| 7. X304 Front Passenger Side Door Door Wiring Harness to Body Wiring Harness X304 Front Passenger Side Door Door Wiring Harness to Body Wiring Harness |
| 8. X209 Instrument Panel Wiring Harness to Body Wiring Harness X209 Instrument Panel Wiring Harness to Body Wiring Harness |
| 9. X306 Right Rear Side Door Door Wiring Harness to Body Wiring Harness X306 Right Rear Side Door Door Wiring Harness to Body Wiring Harness |
| 10. X322 Front Passenger Seat Wiring Harness to Body Wiring Harness X322 Front Passenger Seat Wiring Harness to Body Wiring Harness |
