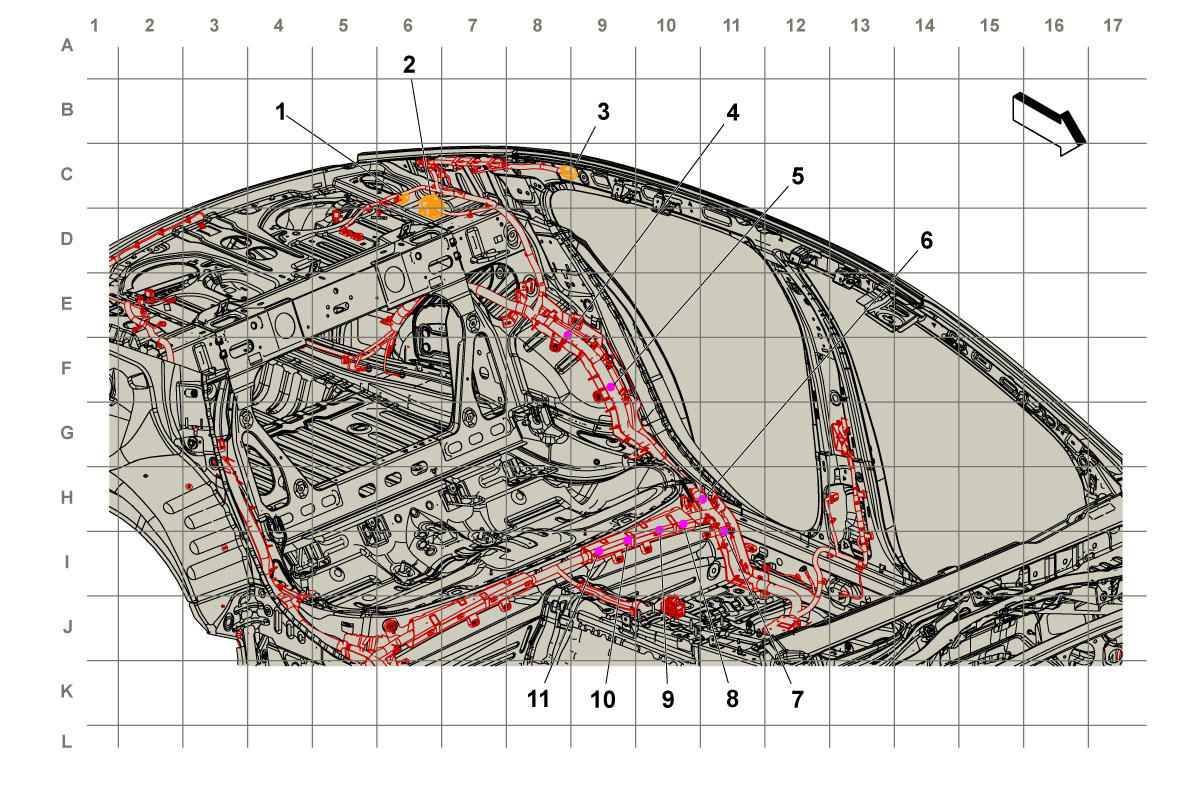

Body Harness Routing - Rear of Passenger Compartment and Left Side of Rear Compartment
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X151 Body Wiring Harness to Rearview Mirror Camera Harness (DRZ) X151 Body Wiring Harness to Rearview Mirror Camera Harness (DRZ) |
| 2. X337 Roof Wiring Harness to Body Wiring Harness X337 Roof Wiring Harness to Body Wiring Harness |
| 3. X338 Sunroof Wiring Harness to Body Wiring Harness X338 Sunroof Wiring Harness to Body Wiring Harness |
| 4. J313 Body Wiring Harness |
| 5. J312 Body Wiring Harness |
| 6. J328 Body Wiring Harness |
| 7. J301 Body Wiring Harness |
| 8. J303 Body Wiring Harness |
| 9. J304 Body Wiring Harness |
| 10. J308 Body Wiring Harness |
| 11. J310 Body Wiring Harness |
