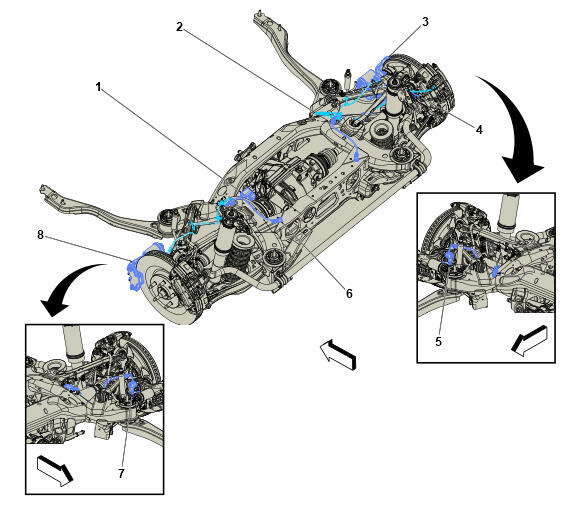

Under Rear of Vehicle Components (LT4)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. M135 Differential Lock Motor (G96) M135 Differential Lock Motor (G96+LT4) |
| 2. B172RR Rear Disc Brake Pad Wear Sensor - Right B172RR Rear Disc Brake Pad Wear Sensor - Right |
| 3. M104R Parking Brake Actuator - Right M104R Parking Brake Actuator - Right (LT4) |
| 4. B5RR Rear Wheel Speed Sensor - Right B5RR Rear Wheel Speed Sensor - Right |
| 5. B162RR Electronic Suspension Rear Vertical Accelerometer - Right B162RR Electronic Suspension Rear Vertical Accelerometer - Right (F55) |
| 6. B5LR Rear Wheel Speed Sensor - Left B5LR Rear Wheel Speed Sensor - Left |
| 7. B162LR Electronic Suspension Rear Vertical Accelerometer - Left B162LR Electronic Suspension Rear Vertical Accelerometer - Left (F55) |
| 8. M104L Parking Brake Actuator - Left M104L Parking Brake Actuator - Left (LT4) |
