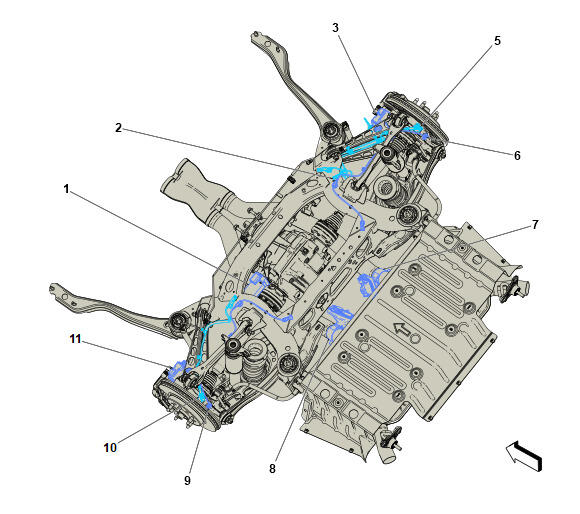

Under Rear of Vehicle Components (LGY or LSY)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. M135 Differential Lock Motor (G96) M135 Differential Lock Motor (G96+LGY)
2. B172RR Rear Disc Brake Pad Wear Sensor - Right B172RR Rear Disc Brake Pad Wear Sensor - Right
3. M104R Parking Brake Actuator - Right M104R Parking Brake Actuator - Right (LGY/LSY)
5. B162RR Electronic Suspension Rear Vertical Accelerometer - Right B162RR Electronic Suspension Rear Vertical Accelerometer - Right (F55)
6. B5RR Rear Wheel Speed Sensor - Right B5RR Rear Wheel Speed Sensor - Right
7. M106S Exhaust Control Valve Actuator - Sound Quality (LGY) M106S Exhaust Control Valve Actuator - Sound Quality (LGY+G96) , or M106S Exhaust Control Valve Actuator - Sound Quality (LGY-G96)
8. M106C Exhaust Control Valve Actuator - Cylinder Deactivation (LGY without G96) M106C Exhaust Control Valve Actuator - Cylinder Deactivation (LGY-G96)
9. B5LR Rear Wheel Speed Sensor - Left B5LR Rear Wheel Speed Sensor - Left
10. B162LR Electronic Suspension Rear Vertical Accelerometer - Left B162LR Electronic Suspension Rear Vertical Accelerometer - Left (F55)
11. M104L Parking Brake Actuator - Left M104L Parking Brake Actuator - Left (LGY/LSY)
