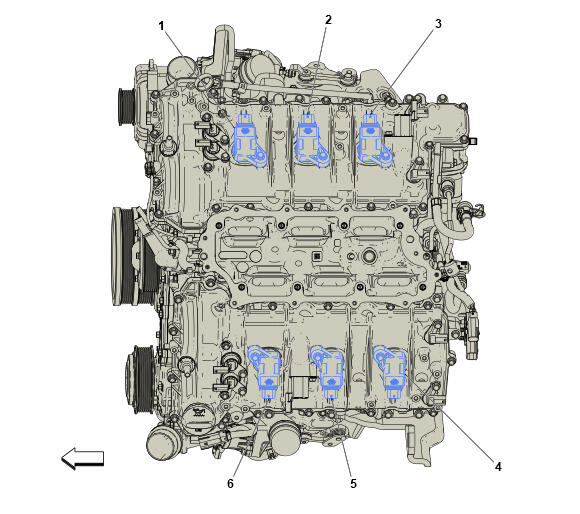

Top of Engine Components (LGY)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. T8A Ignition Coil 1 T8A Ignition Coil 1 (LGY) |
| 2. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGY) |
| 3. T8E Ignition Coil 5 (LGY or LT4) T8E Ignition Coil 5 (LGY) |
| 4. T8F Ignition Coil 6 (LGY or LT4) T8F Ignition Coil 6 (LGY) |
| 5. T8D Ignition Coil 4 T8D Ignition Coil 4 (LGY) |
| 6. T8B Ignition Coil 2 T8B Ignition Coil 2 (LGY) |
