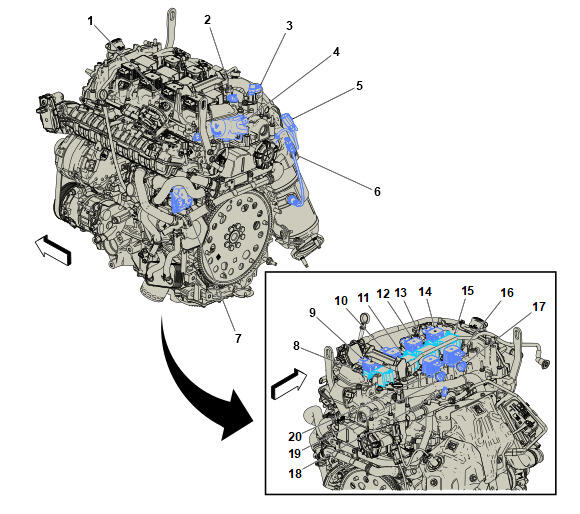

Top Rear of Engine Components (LSY)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. B23F Camshaft Position Sensor - Intake (LSY) B23F Camshaft Position Sensor - Intake (LSY) |
| 2. B23E Camshaft Position Sensor - Exhaust (LSY) B23E Camshaft Position Sensor - Exhaust (LSY) |
| 3. B321 Crankcase Pressure Sensor B321 Crankcase Pressure Sensor (LSY) |
| 4. G18 Fuel Pump - High Pressure G18 Fuel Pump - High Pressure (LGY/LSY) |
| 5. B52A Heated Oxygen Sensor 1 (LSY) B52A Heated Oxygen Sensor 1 (LSY) |
| 6. B52B Heated Oxygen Sensor 2 (LSY) B52B Heated Oxygen Sensor 2 (LSY) |
| 7. Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve |
| 8. T8D Ignition Coil 4 T8D Ignition Coil 4 (LSY) |
| 9. M129D Intake Camshaft Profile Actuator 4 (LSY) M129D Intake Camshaft Profile Actuator 4 (LSY) |
| 10. M129C Intake Camshaft Profile Actuator 3 (LSY) M129C Intake Camshaft Profile Actuator 3 (LSY) |
| 11. T8C Ignition Coil 3 T8C Ignition Coil 3 (LSY) |
| 12. M129B Intake Camshaft Profile Actuator 2 (LSY) M129B Intake Camshaft Profile Actuator 2 (LSY) |
| 13. T8B Ignition Coil 2 T8B Ignition Coil 2 (LSY) |
| 14. M129A Intake Camshaft Profile Actuator 1 (LSY) M129A Intake Camshaft Profile Actuator 1 (LSY) |
| 15. T8A Ignition Coil 1 T8A Ignition Coil 1 (LSY) |
| 16. M130B Exhaust Camshaft Profile Actuator 2 (LSY) M130B Exhaust Camshaft Profile Actuator 2 (LSY) |
| 17. B339A Exhaust Camshaft Profile Sleeve Position Sensor 1 (LSY) B339A Exhaust Camshaft Profile Sleeve Position Sensor 1 (LSY) |
| 18. B34E Engine Coolant Temperature Sensor 5 (LSY) B34E Engine Coolant Temperature Sensor 5 (LSY) |
| 19. B339B Exhaust Camshaft Profile Sleeve Position Sensor 2 (LSY) B339B Exhaust Camshaft Profile Sleeve Position Sensor 2 (LSY) |
