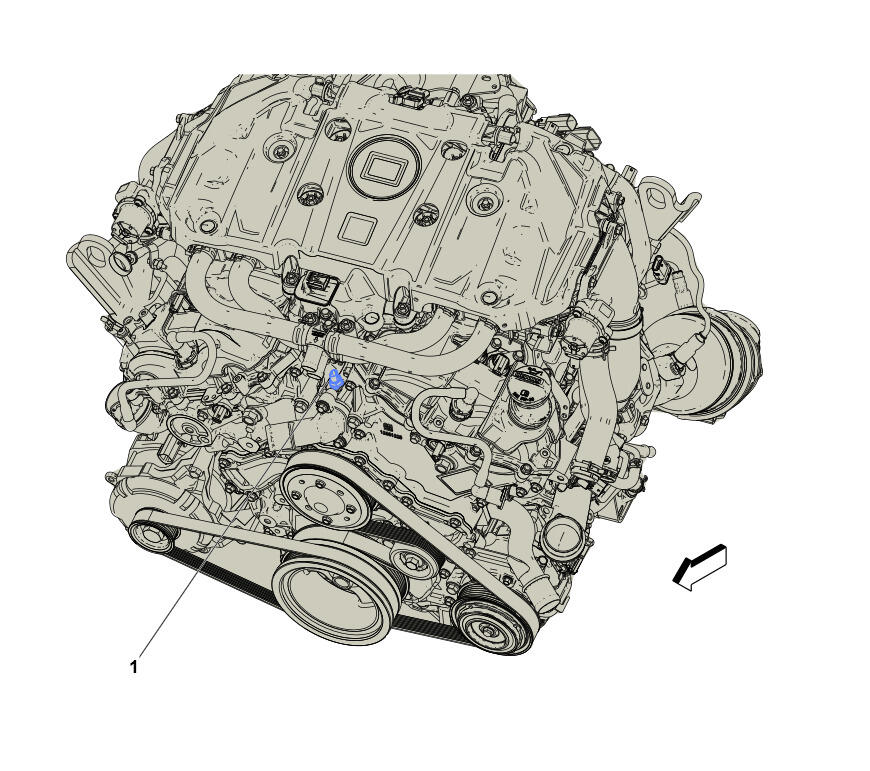

Top Forward Center of Engine Components (LGY)
Top Forward Center of Engine Components (LGY)
WARNING:
This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
Items
1. B34 Engine Coolant Temperature Sensor (LGY)
B34 Engine Coolant Temperature Sensor (LGY)
