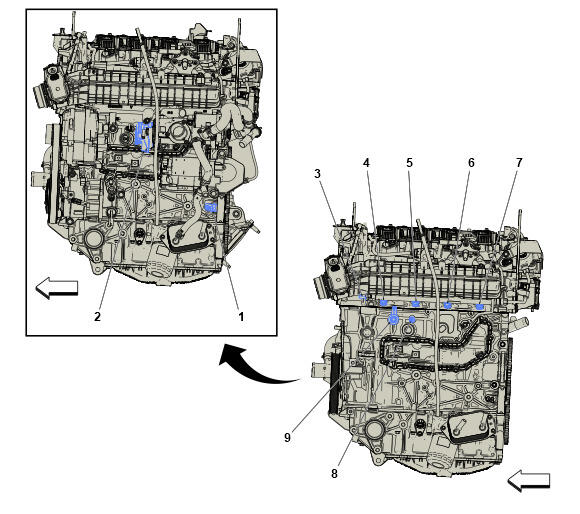

Left Side of Engine (LSY)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. B26 Crankshaft Position Sensor (LSY) B26 Crankshaft Position Sensor (LSY) |
| 2. Q97 Engine Coolant Flow Control Valve (LSY) |
| 3. B310 Fuel Pressure and Temperature Sensor B310 Fuel Pressure and Temperature Sensor (LSY) |
| 4. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LSY) |
| 5. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LSY) |
| 6. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LSY) |
| 7. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LSY) |
| 8. B34F Engine Coolant Temperature Sensor 6 (LSY) B34F Engine Coolant Temperature Sensor 6 (LSY) |
| 9. B68A Knock Sensor 1 B68A Knock Sensor 1 (LSY) |
