Fuel Tank Components

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

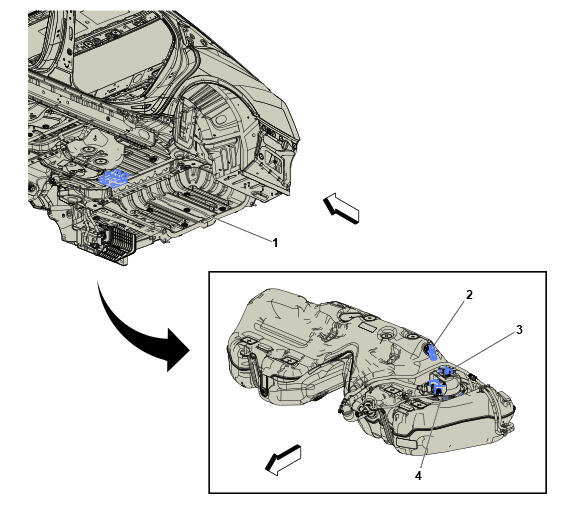

GM5638723Courtesy of GENERAL MOTORS COMPANY
Items
1. K111 Fuel Pump Power Control Module K111 Fuel Pump Power Control Module
2. B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor
3. B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor
4. A7 Fuel Tank Fuel Pump Module A7 Fuel Tank Fuel Pump Module
