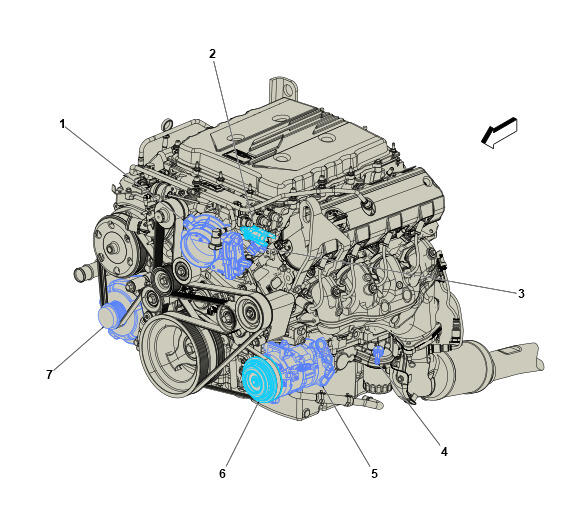

Front of Engine Components (LT4)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. Q38 Throttle Body Q38 Throttle Body (LSY/LT4) |
| 2. Q12 Evaporative Emission Canister Purge Solenoid Valve Q12 Evaporative Emission Canister Purge Solenoid Valve |
| 3. B105 Supercharger Air Inlet Pressure Sensor (LT4) B105 Supercharger Air Inlet Pressure Sensor (LT4) |
| 4. B36 Engine Oil Temperature Sensor (LT4) B36 Engine Oil Temperature Sensor (LT4) |
| 5. Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve |
| 6. Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch |
| 7. G13 Generator G13 Generator X1 , or G13 Generator X2 (LT4) |
