Automatic Transmission Components
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

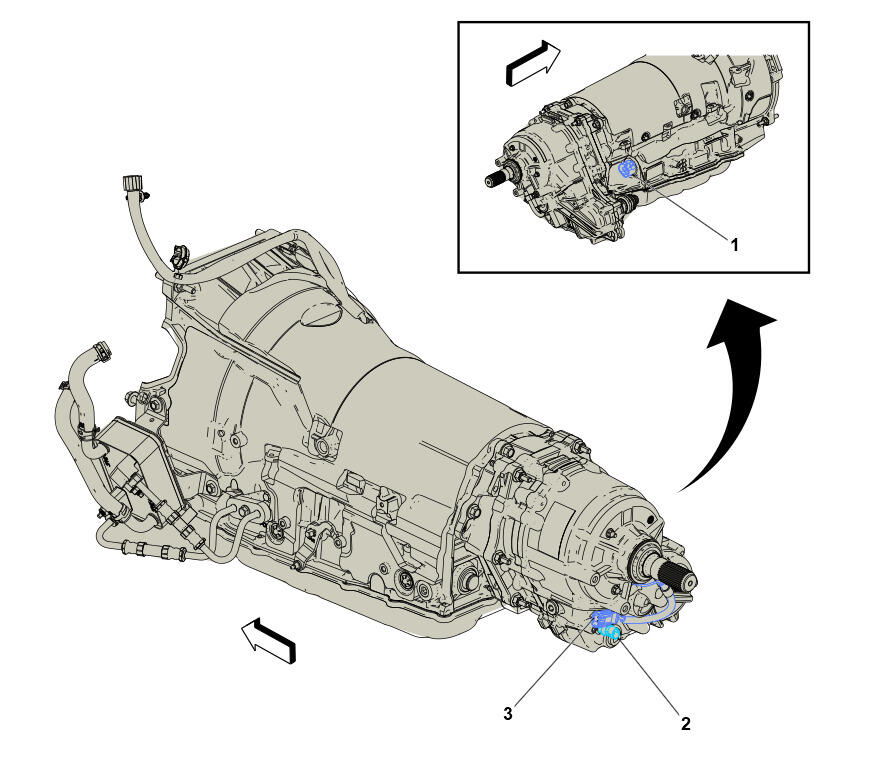

| Items |
|---|
| 1. T12 Automatic Transmission (without MJK) T12 Automatic Transmission X1 (-MJK) , or T12 Automatic Transmission X2 , or T12 Automatic Transmission X3 |
| 2. B109 Transfer Case Fluid Temperature Sensor (F46) B109 Transfer Case Fluid Temperature Sensor (F46) |
| 3. M71 Transfer Case Two/Four Wheel Drive Clutch Coil (F46) M71 Transfer Case Two/Four Wheel Drive Clutch Coil (F46) |
