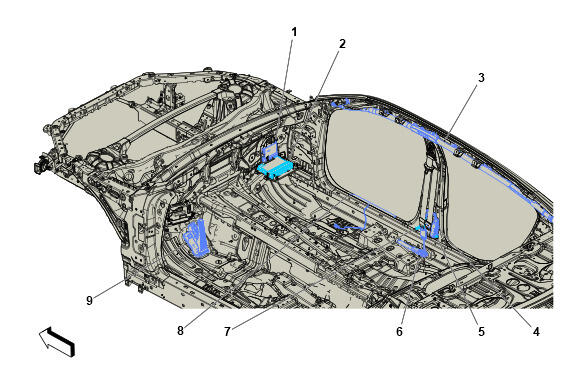

Right Side of Passenger Compartment Components (1 of 2)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Items |
| 1. K219 Lighting Control Module K219 Lighting Control Module X1
, or K219 Lighting Control Module X2
, or K219 Lighting Control Module X3
, or K219 Lighting Control Module X4
, or K219 Lighting Control Module X5 |
| 2. K9 Body Control Module K9 Body Control Module X1
, or K9 Body Control Module X2
, or K9 Body Control Module X3
, or K9 Body Control Module X4
, or K9 Body Control Module X5
, or K9 Body Control Module X6
, or K9 Body Control Module X7
, or K9 Body Control Module X8 |
| 3. F105RR Front and Rear Row Roof Rail Airbag - Right Rear F105RR Front and Rear Row Roof Rail Airbag - Right Rear |
| 4. M101R Front Seat Belt Retractor Motor - Right (AX7) M101R Front Seat Belt Retractor Motor - Right (AX7) |
| 5. F112P Front Seat Belt Retractor - Passenger F112P Front Seat Belt Retractor - Passenger |
| 6. F113P Front Seat Belt Anchor Plate Tensioner - Passenger F113P Front Seat Belt Anchor Plate Tensioner - Passenger |
| 7. B61P Seat Belt Tension Sensor - Passenger B61P Seat Belt Tension Sensor - Passenger |
| 8. E8B Front Side Door Sill Plate Illumination Lamp - Right (B7G) E8B Front Side Door Sill Plate Illumination Lamp - Right (B7G) |
| 9. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
