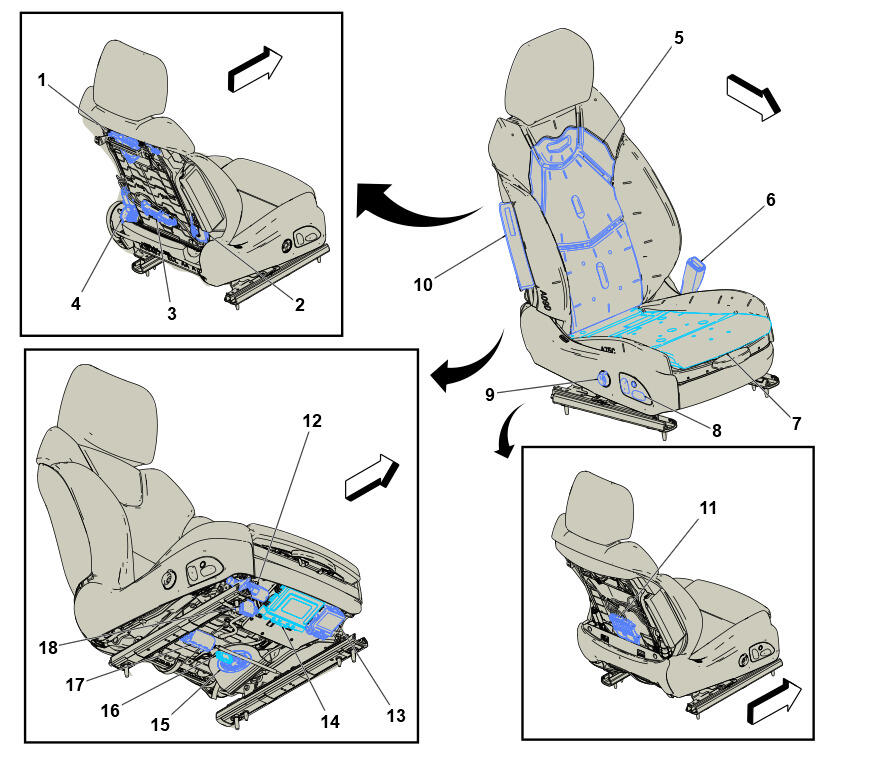

Passenger Seat Components

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. M73B Front Seat Back Ventilation Blower - Passenger (KU9) M73B Front Seat Back Ventilation Blower - Passenger (KU9)
2. G31P Front Seat Back Lumbar Pump - Passenger G31P Front Seat Back Lumbar Pump - Passenger
3. K104P Front Seat Bladder Control Module - Passenger (AVU without AHH or AKE) K104P Front Seat Bladder Control Module - Passenger (AVU-(AHH/AKE))
4. M56P Front Seat Recliner Actuator - Passenger M56P Front Seat Recliner Actuator - Passenger
5. E14C Front Seat Back Heater - Passenger (KA1) E14C Front Seat Back Heater - Passenger (KA1)
6. B153P Front Seat Belt Buckle - Passenger
7. E14D Front Seat Cushion Heater - Passenger (KA1) E14D Front Seat Cushion Heater - Passenger (KA1)
8. S64P Front Seat Adjuster Switch - Passenger S64P Front Seat Adjuster Switch - Passenger (A7J/A7K-AHH) , or S64P Front Seat Adjuster Switch - Passenger (A7K+AHH)
9. S65P Front Seat Lumbar Switch - Passenger S65P Front Seat Lumbar Switch - Passenger (A7J) , or S65P Front Seat Lumbar Switch - Passenger (A7K)
10. F106P Front Seat Outboard Seat Back Airbag - Passenger F106P Front Seat Outboard Seat Back Airbag - Passenger
11. K134P Front Seat Bolster Memory Module - Passenger (AHH) K134P Front Seat Bolster Memory Module - Passenger (AHH)
12. M50P Front Seat Tilt Adjuster Actuator - Passenger M50P Front Seat Tilt Adjuster Actuator - Passenger
13. K29FV Front Seat Heater Vent Control Module K29FV Front Seat Heater Vent Control Module X1 (KA1) , or K29FV Front Seat Heater Vent Control Module X2 (KA1)
14. K40P Passenger Seat Adjuster Memory Module K40P Passenger Seat Adjuster Memory Module X1 (AVU) , or K40P Passenger Seat Adjuster Memory Module X2 (AVU) , or K40P Passenger Seat Adjuster Memory Module X3 (AVU)
15. M73P Front Seat Cushion Ventilation Blower - Passenger (KU9) M73P Front Seat Cushion Ventilation Blower - Passenger (KU9)
16. E8VD Rear Floor Courtesy Lamp - Right (C70) E8VD Rear Floor Courtesy Lamp - Right (C70)
17. M51P Front Seat Adjuster Actuator - Passenger M51P Front Seat Adjuster Actuator - Passenger
18. K85P Restraints Occupant Classification System Module - Passenger K85P Restraints Occupant Classification System Module - Passenger
