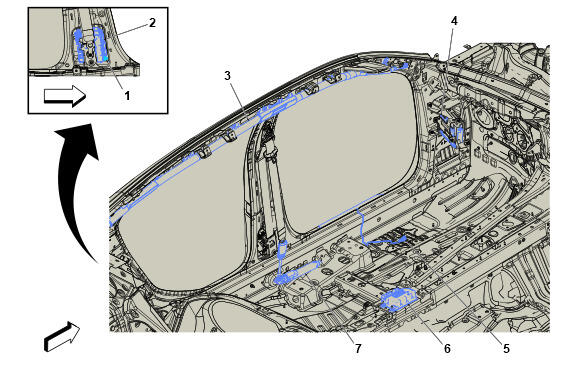

Left Side of Passenger Compartment Components
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. F112D Front Seat Belt Retractor - Driver F112D Front Seat Belt Retractor - Driver |
| 2. M101L Front Seat Belt Retractor Motor - Left (AX7) M101L Front Seat Belt Retractor Motor - Left (AX7) |
| 3. F105LR Front and Rear Row Roof Rail Airbag - Left Rear F105LR Front and Rear Row Roof Rail Airbag - Left Rear |
| 4. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 , or K56 Serial Data Gateway Module X3 |
| 5. E8A Front Side Door Sill Plate Illumination Lamp - Left (B7G) E8A Front Side Door Sill Plate Illumination Lamp - Left (B7G) |
| 6. K36 Restraints Control Module K36 Restraints Control Module X1 (-(1SV/UKL)) , or K36 Restraints Control Module X1 (1SV/UKL) , or K36 Restraints Control Module X2 (-(1SV/UKL)) , or K36 Restraints Control Module X2 (1SV/UKL) |
| 7. F113D Front Seat Belt Anchor Plate Tensioner - Driver F113D Front Seat Belt Anchor Plate Tensioner - Driver |
