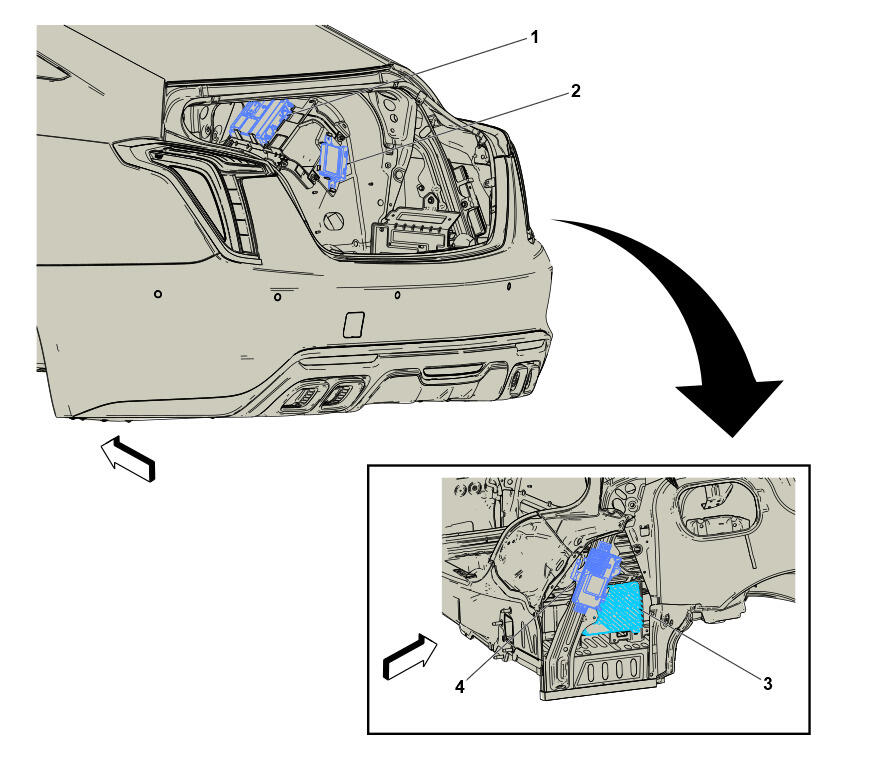

Right Side of Rear Compartment Components (1 of 2)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. K73 Telematic Control Module K73 Telematic Control Module X1 (UE1) , or K73 Telematic Control Module X2 (UE1) , or K73 Telematic Control Module X3 (UE1)
2. K182 Parking Assist Control Module (UD7 or UKG) K182 Parking Assist Control Module X1 (UD7/UKG) , or K182 Parking Assist Control Module X2 (UD7/UKG) , or K182 Parking Assist Control Module X3 (UD7/UKG)
3. T3 Audio Amplifier T3 Audio Amplifier X1 (UQG) , or T3 Audio Amplifier X1 (UQP) , or T3 Audio Amplifier X1 (UQS) , or T3 Audio Amplifier X2 (UQG) , or T3 Audio Amplifier X2 (UQP) , or T3 Audio Amplifier X2 (UQS) , or T3 Audio Amplifier X3 (UQG) , or T3 Audio Amplifier X3 (UQP) , or T3 Audio Amplifier X3 (UQS) , or T3 Audio Amplifier X4 (UQP) , or T3 Audio Amplifier X5 (UQS)
4. K157 Video Processing Module (UV2) K157 Video Processing Module X1 (UV2) , or K157 Video Processing Module X2 (UV2) , or K157 Video Processing Module X3 (UV2) , or K157 Video Processing Module X3 (UV2+UKL) , or K157 Video Processing Module X4 (UV2) , or K157 Video Processing Module X4 (UV2+UKL) , or K157 Video Processing Module X5 (UV2) , or K157 Video Processing Module X6 (UV2+UKL) , or K157 Video Processing Module X7 (UV2+UKL)
